Repair Procedures: Installation

Install in the reverse order of removal.

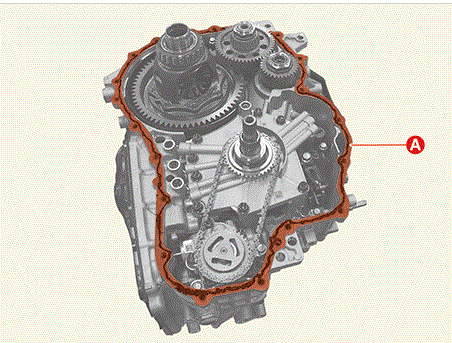

NOTE: Apply sealant on the IVT case side (A).

Standard sealant :

Bead diameter :

Courtesy of KIA MOTORS AMERICA, INC.

Check the IVTF level after refilling the IVT with fluid.
(Refer to Transmission Gear Oil - "Replacement")
