Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

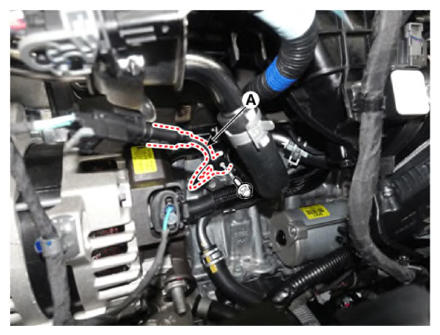

  2. Remove the knock sensor (A) after removing the mounting bolt.

    Tightening torque:

    19.0-24.5 N.m (1.9-2.5 kgf.m, 13.8-18.1 lb.ft)

    G13833971Courtesy of KIA MOTORS AMERICA, INC.

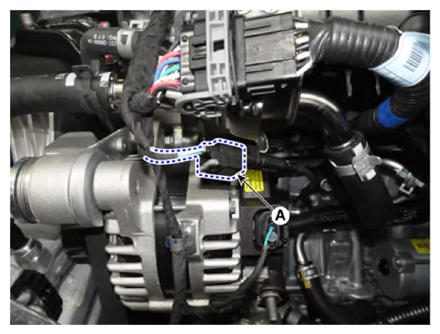

  3. Disconnect the knock sensor connector (A).
    G13833972Courtesy of KIA MOTORS AMERICA, INC.

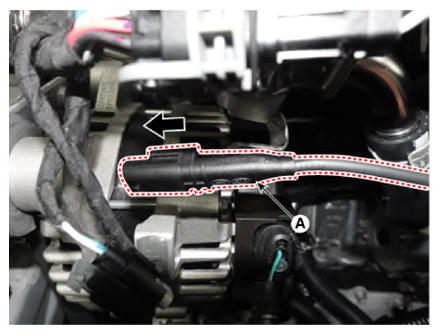

  4. Remove the knock sensor connector (A) from bracket by pushing it in the direction of arrow.
    G13833973Courtesy of KIA MOTORS AMERICA, INC.
