Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

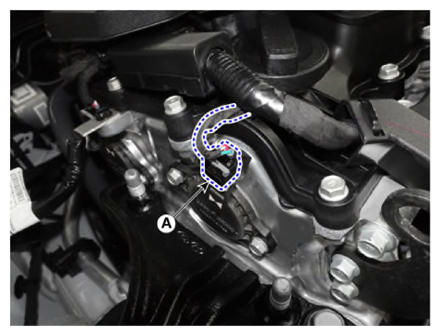

Disconnect the variable force solenoid (VFS) connector (A).
Intake

Courtesy of KIA MOTORS AMERICA, INC.

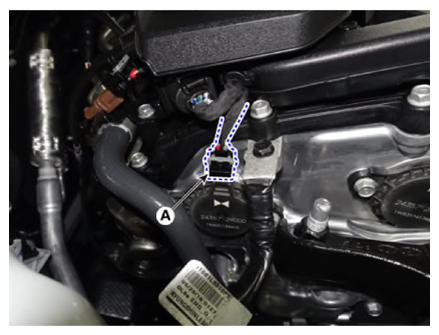

Exhaust

Courtesy of KIA MOTORS AMERICA, INC.

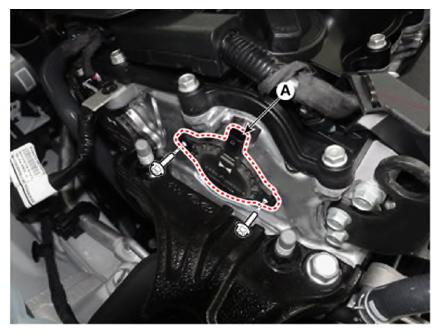

Remove the variable force solenoid (A) after removing the mounting bolt.
Tightening torque:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Intake

Courtesy of KIA MOTORS AMERICA, INC.

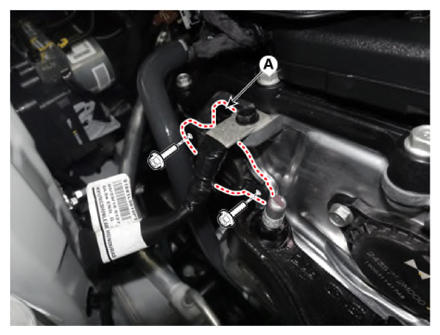

Exhaust

Courtesy of KIA MOTORS AMERICA, INC.
