Component Location

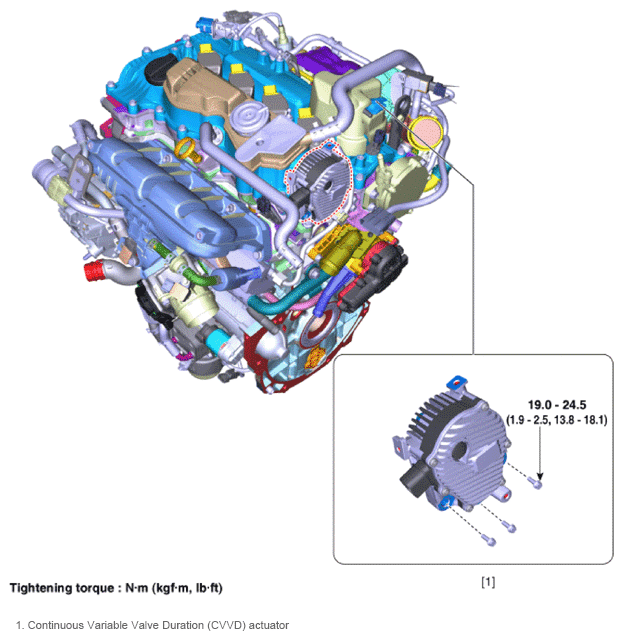

Fig 1: CVVD Actuator Components Location With Torque Specification
G13833886Courtesy of KIA MOTORS AMERICA, INC.
