Repair Procedures: Removal: Intake

Disconnect the battery negative (-) terminal.
Remove the engine cover.

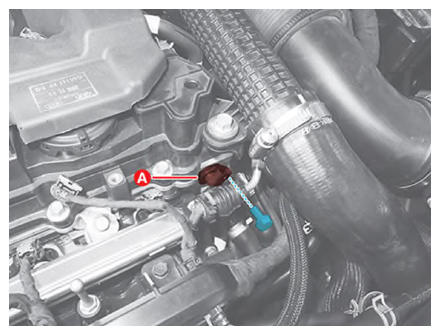

Disconnect the Camshaft Position Sensor (CMPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the CMPS (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
