Component Location

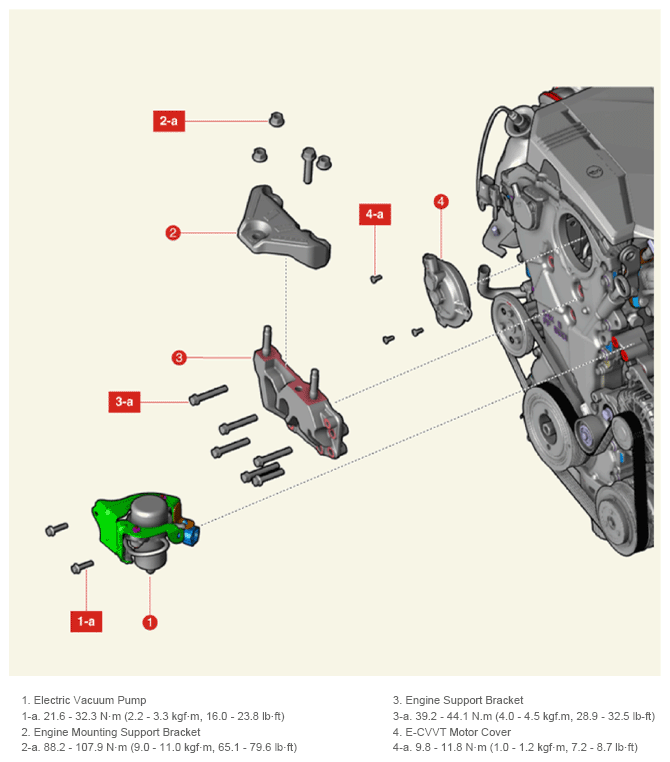

Fig 1: E-CVVT Motor Cover Components Location With Torque Specification
G13837474Courtesy of KIA MOTORS AMERICA, INC.
