Repair Procedures: Adjustment

NOTE: Perform the following procedure when replacing ECM (New parts/Reused parts).
  1. Perform the neutral mode using the KDS when replacing with a reused ECM.

    [Non-Smart Key]

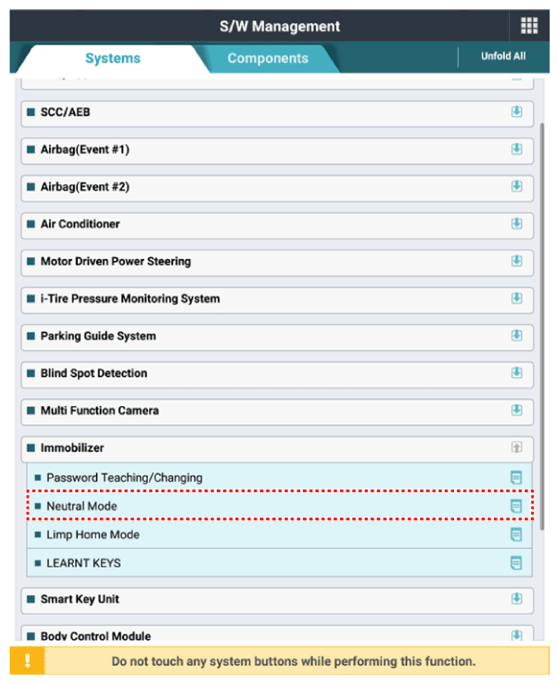

    G13837443Courtesy of KIA MOTORS AMERICA, INC.

    [Smart Key]

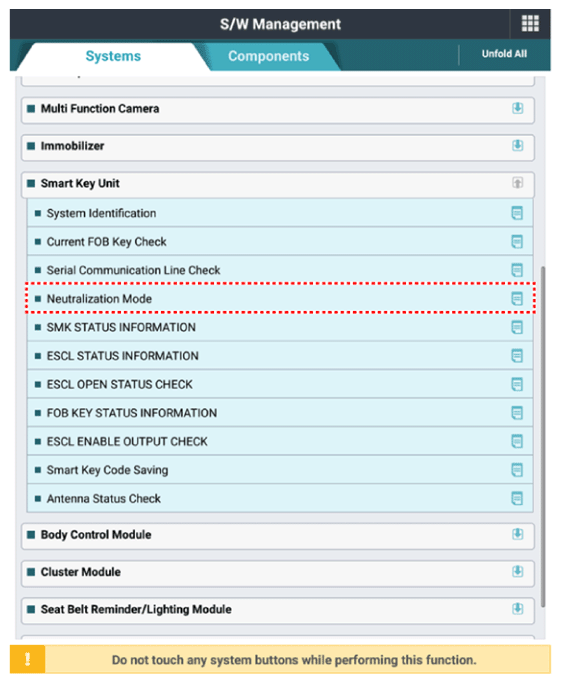

    G13837444Courtesy of KIA MOTORS AMERICA, INC.
  2. Perform the "Key Teaching" procedure by using the KDS.

    [Non-Smart Key]

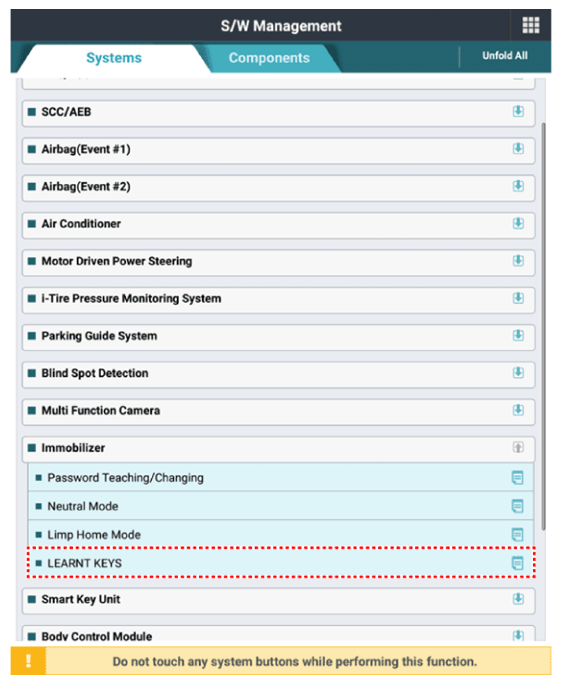

    G13837445Courtesy of KIA MOTORS AMERICA, INC.

    [Smart Key]

    Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

  3. Perform the VIN writing procedure by using the KDS.

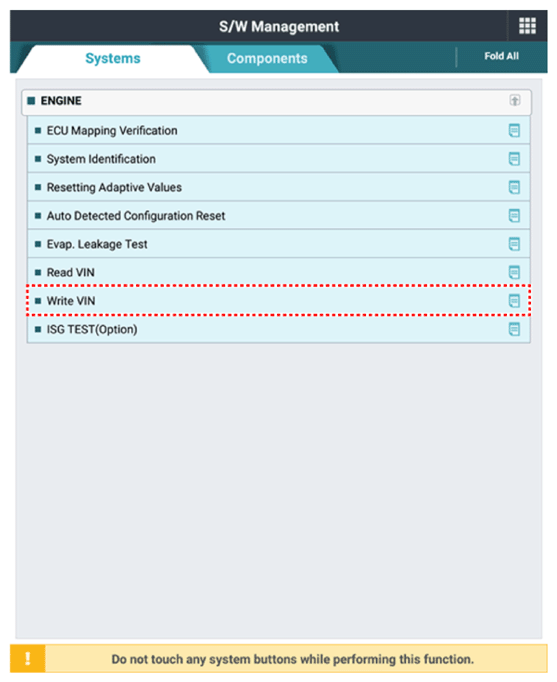

    G13837446Courtesy of KIA MOTORS AMERICA, INC.

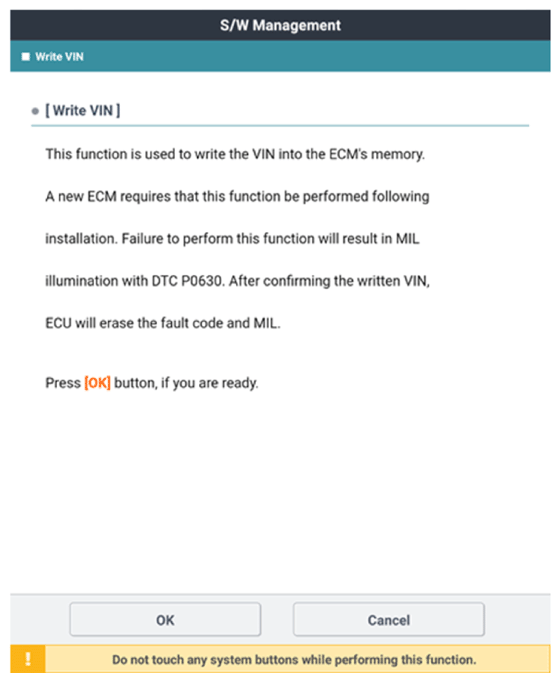

    G13837447Courtesy of KIA MOTORS AMERICA, INC.
  4. Perform ETC module learning procedure

    (Refer to " ADJUSTMENT  ")
