Repair Procedures: Removal

  1. Remove the air cleaner assembly.

    (Refer to " Removal And Installation  ")

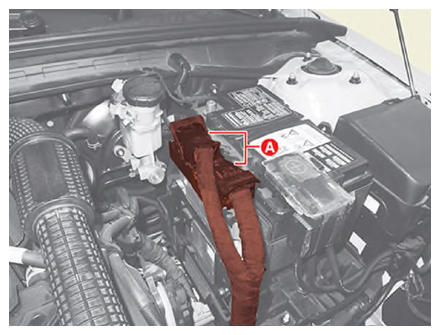

  2. Disconnect the ECM connectors (A).
    G13837440Courtesy of KIA MOTORS AMERICA, INC.

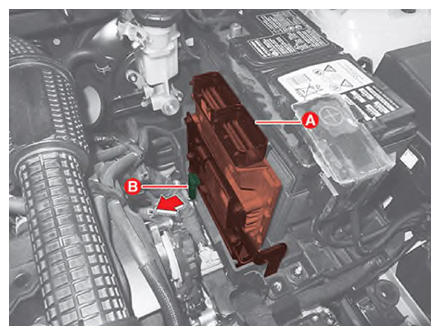

  3. Remove the ECM (A) by pulling it upward while pulling the hook (B) in the direction of arrow.
    G13837441Courtesy of KIA MOTORS AMERICA, INC.

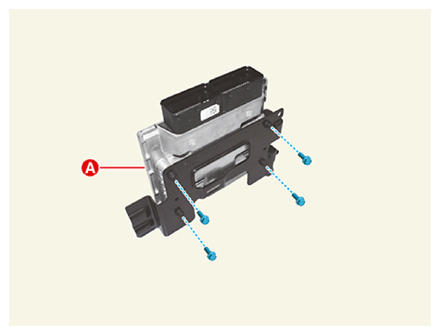

  4. Remove the bracket (A) from the ECM after removing the mounting bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13837442Courtesy of KIA MOTORS AMERICA, INC.
