Home >> Kia >> 2021 >> Niro LXS >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Electric EGR Control Valve >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. EGR cooler pipe.

    (Refer to Engine Mechanical System - "EGR COOLER ")

  3. Remove the EEGR valve (B) after loosening the mounting bolts and nuts (A).

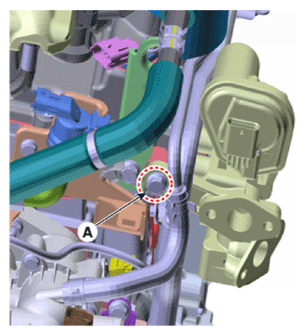

    G13436649Courtesy of KIA MOTORS AMERICA, INC.

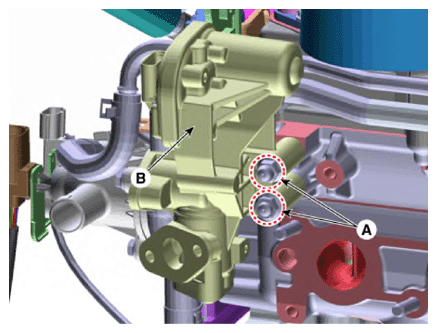

    G13436650Courtesy of KIA MOTORS AMERICA, INC.

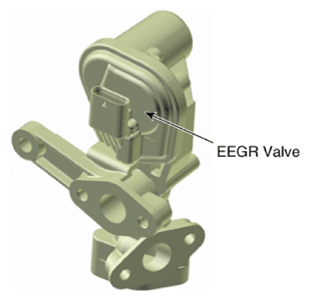

    G13436651Courtesy of KIA MOTORS AMERICA, INC.
