Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

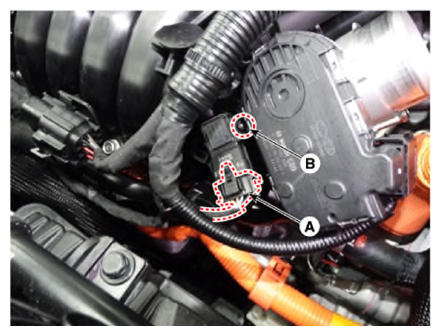

  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the sensor (B) after loosening the mounting bolt from the intake manifold.

    Manifold absolute pressure sensor mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13348741Courtesy of KIA MOTORS AMERICA, INC.
