Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Always use new gasket.
    • When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

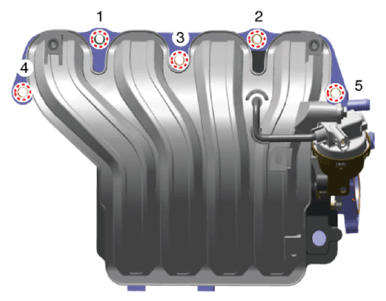

      Fig 1: Intake Manifold Bolts And Nuts Tightening Sequence
      G13704725Courtesy of KIA MOTORS AMERICA, INC.
