Removal And Installation

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

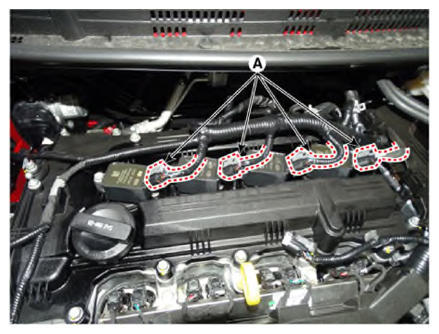

  2. Disconnect the ignition coil connectors (A).
    G13704491Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

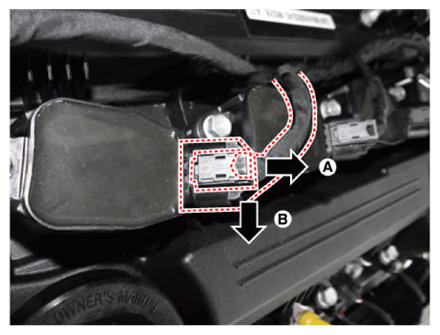

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
      G13704492Courtesy of KIA MOTORS AMERICA, INC.

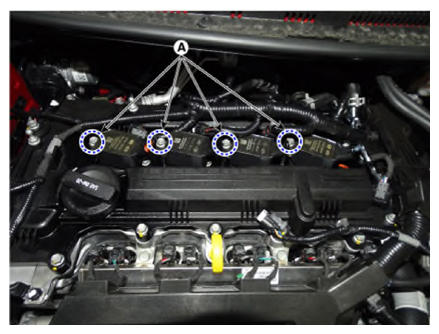

  3. Remove the ignition coil after loosening the mounting bolts (A).

    Ignition coil mounting bolt:

    9.8 -11.8 N.m (1.0 -1.2 kgf.m, 7.2 - 8.7 Ib-ft)

    G13704493Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
    NOTE:
    • Install the ignition coil with the specified torque.
    • If ignition coil is dropped, it may cause internal damage. Do not use it.

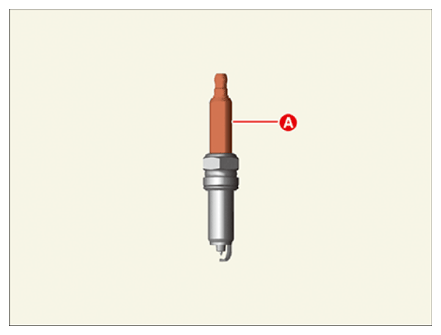

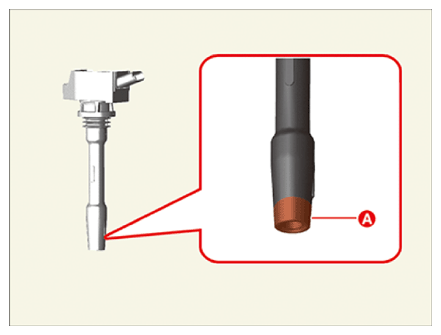

    • When assembling the parts, clean the contaminated area (A).
      • The cloth should be clean, free of contaminants, and soft enough to not damage the parts.

        (When replacing ignition coil and spark plug together, cleaning is not required.)

      G13704494Courtesy of KIA MOTORS AMERICA, INC.
      G13704495Courtesy of KIA MOTORS AMERICA, INC.
