Removal & Installation

NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

    Heated oxygen sensor:

    39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

    [Bank 1/Sensor 1]

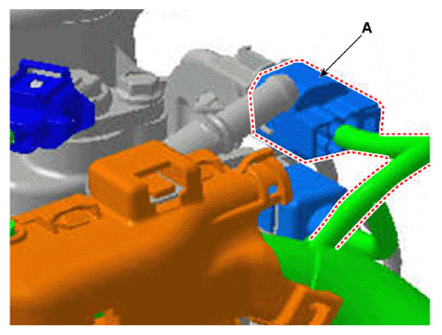

    G13280863Courtesy of KIA MOTORS AMERICA, INC.

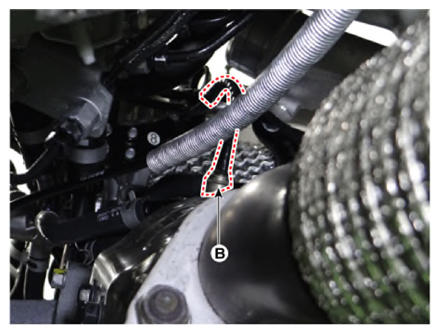

    G13280864Courtesy of KIA MOTORS AMERICA, INC.

    [Bank 1/Sensor 2]

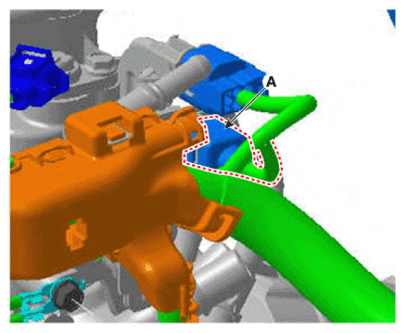

    G13280865Courtesy of KIA MOTORS AMERICA, INC.

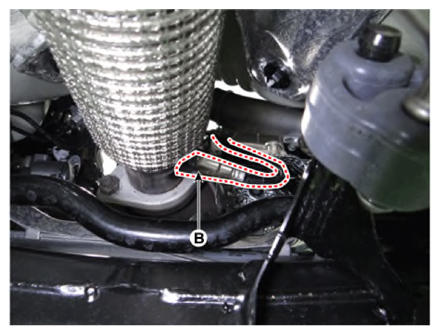

    G13280866Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • DON'T use a cleaner, spray, or grease to sensing element and connector of the sensor because oil component in them may malfunction the sensor performance.
  • Sensor and its wiring may be damaged in case of contacting with the exhaust system (Exhaust Manifold, Catalytic Converter, and so on).
