Removal & Installation

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct.

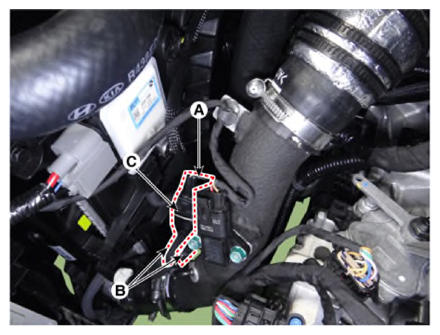

  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  4. Remove the RCV control solenoid valve (C) after loosening the mounting bolt.

    RCV control solenoid valve bracket mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13280930Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
