Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

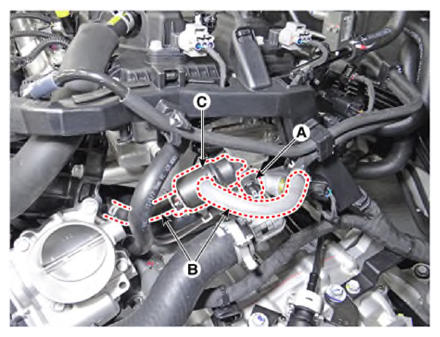

  3. Disconnect the purge control solenoid valve (PCSV) connector (A) and vapor hoses (B).
  4. Remove the purge control solenoid valve (PCSV) (C).
    G13283806Courtesy of KIA MOTORS AMERICA, INC.
