Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

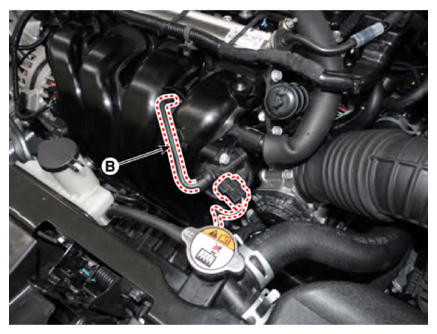

  2. Disconnect the variable intake solenoid valve connector (A) and Vacuum hose (B).
    G13283822Courtesy of KIA MOTORS AMERICA, INC.

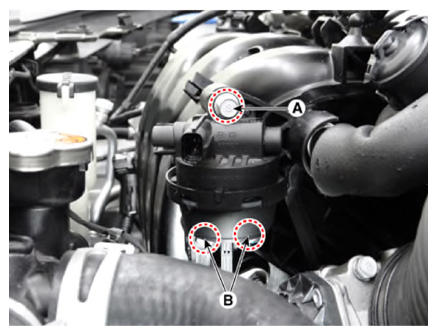

  3. Remove the VIS valve mounting bolts (A).

    Variable intake solenoid valve bracket mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13283823Courtesy of KIA MOTORS AMERICA, INC.

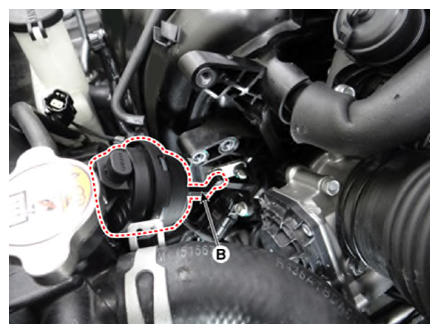

  4. Remove the VIS valve (A) after loosening the rod (B).
    G13283824Courtesy of KIA MOTORS AMERICA, INC.
