Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

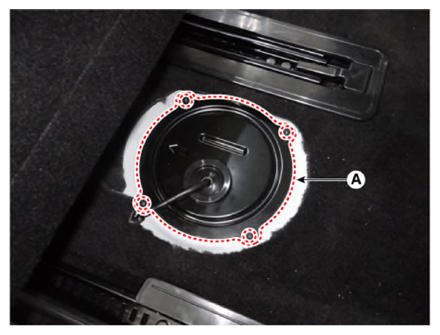

  2. Remove the fuel pump service cover (A).
    G13310058Courtesy of KIA MOTORS AMERICA, INC.

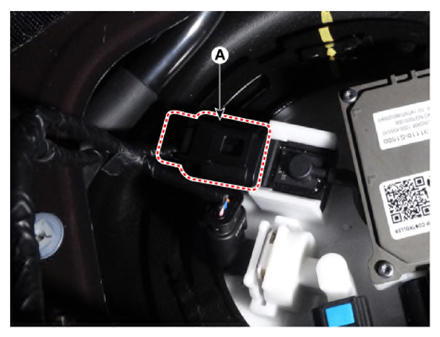

  3. Disconnect the fuel pressure sensor connector (A).
    G13310059Courtesy of KIA MOTORS AMERICA, INC.

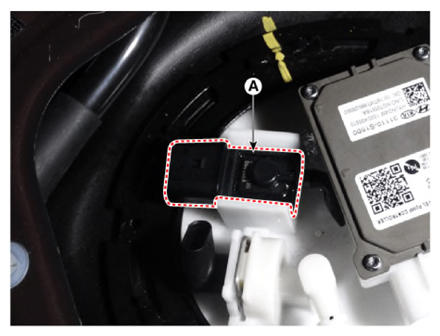

  4. Release the hooks and then remove the fuel tank pressure sensor (A) from the fuel pump.
    G13310060Courtesy of KIA MOTORS AMERICA, INC.
