Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the battery.

    (Refer to Body Electrical System - "BATTERY ")

  3. Remove the air cleaner assembly.

    (Engine Mechanical System - "Air cleaner")

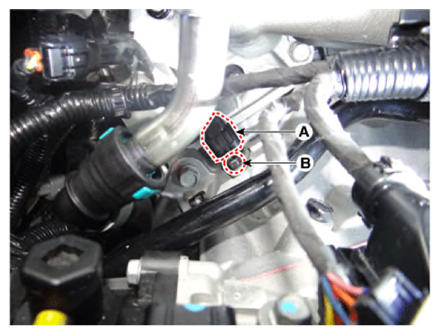

  4. Disconnect the crankshaft position sensor connector (A).
  5. Remove the mounting bolt (B), and then vertically remove the sensor from the transaxle housing.

    Crankshaft Position Sensor mounting bolt:

    6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb.ft)

    G13310015Courtesy of KIA MOTORS AMERICA, INC.
