Home >> Kia >> 2022 >> Soul GT Line >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Intake Middle Lock Control Solenoid >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Disconnect the intake middle lock control solenoid connector (A).

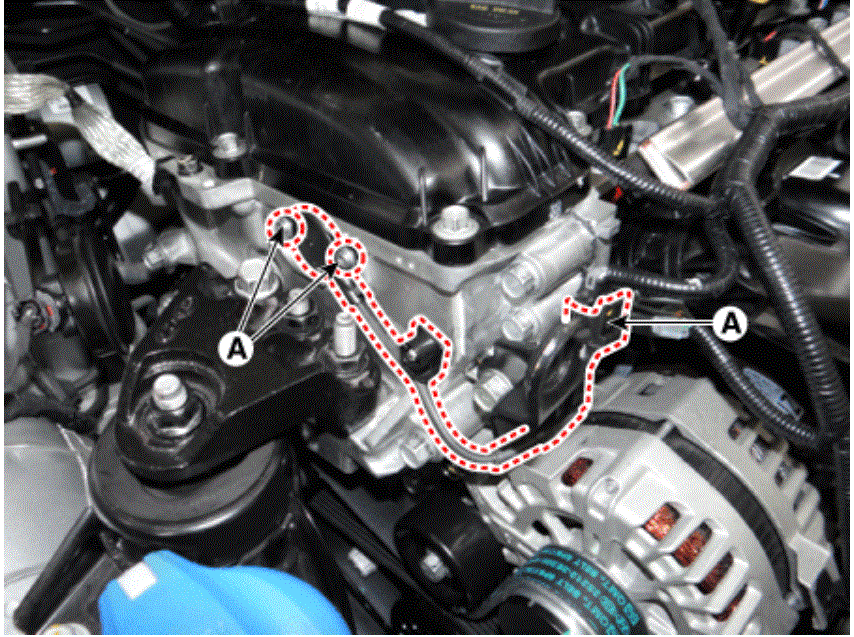

  3. Remove the mounting screws (A), and then remove the intake middle lock control solenoid from the engine.
G00588700Courtesy of KIA MOTORS AMERICA, INC.
