Component Locations

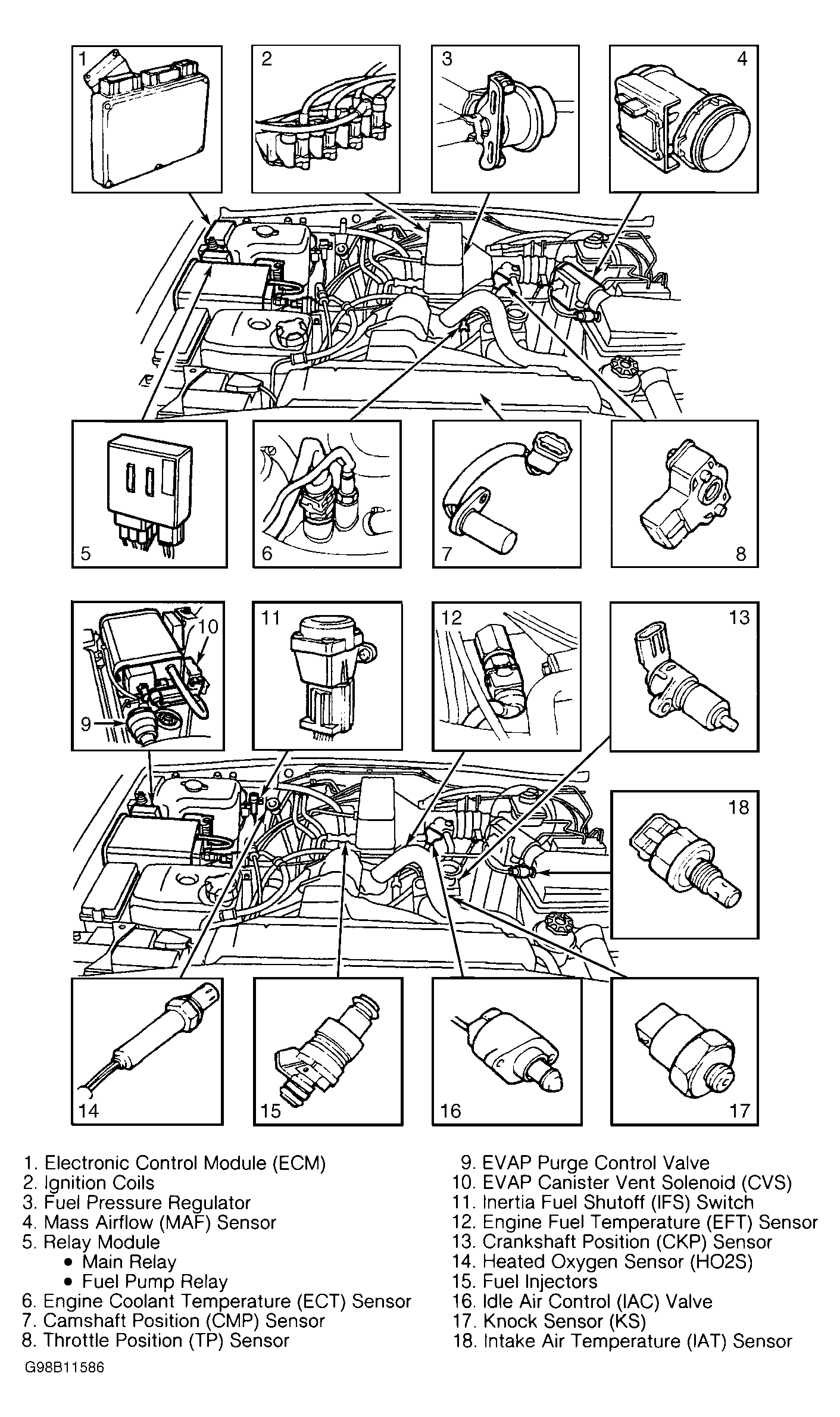

Fig 1: Locating Computerized Engine Components (Discovery - GEMS)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Locating Computerized Engine Control Components (Discovery Series II - Bosch)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Locating Computerized Engine Control Components (Range Rover - Bosch - 1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 4: Locating Computerized Engine Control Components (Range Rover - Bosch - 2 Of 2)
