Fuel System - KV6 Petrol

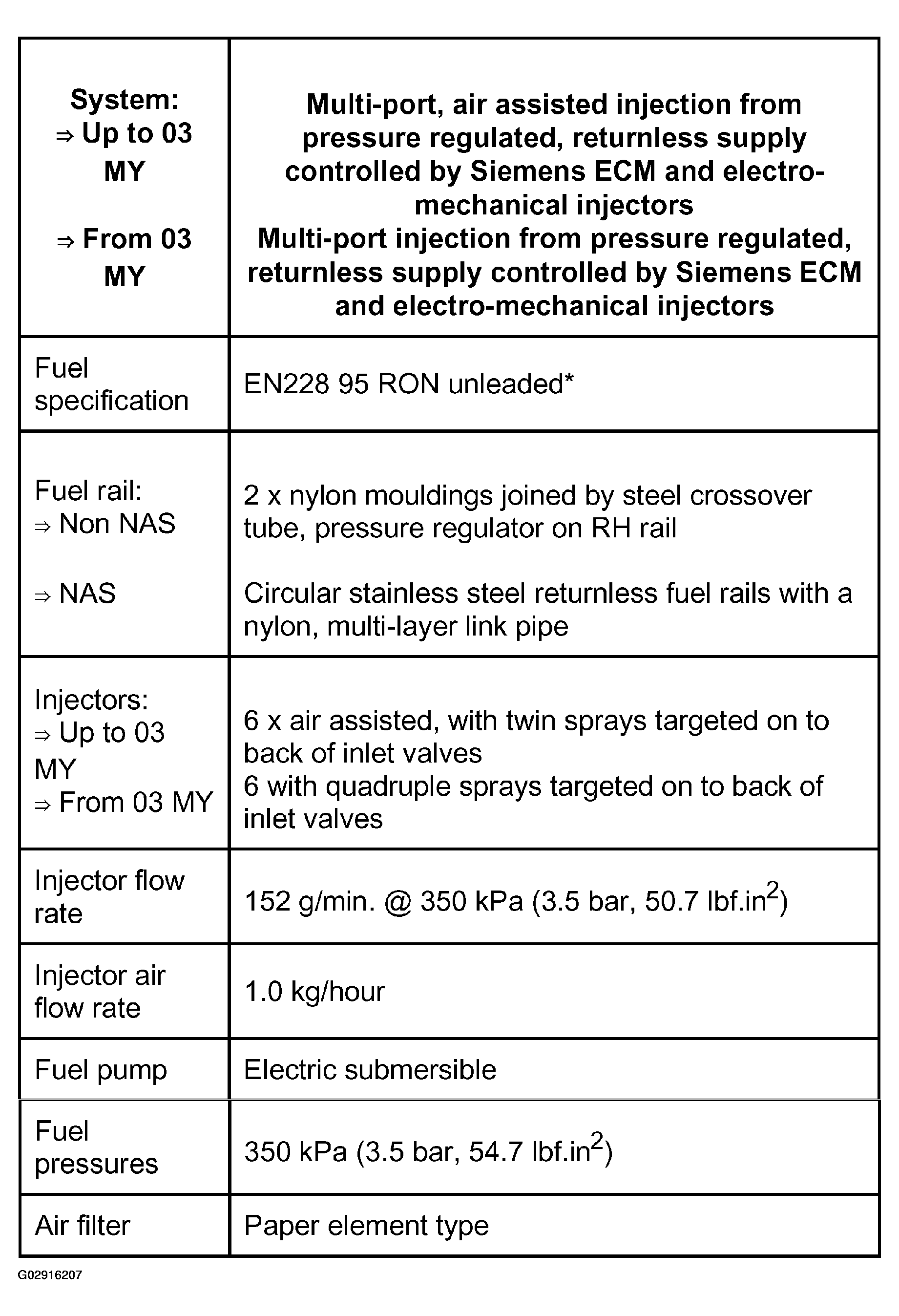

Fig 1: Fuel System Specification - KV6 Petrol

Courtesy of LAND ROVER NORTH AMERICA, INC.

Different octane ratings (98 RON) may be defined nationally; 90 - 98 RON if re-tuned via Testbook/T4 programme. Leaded specifications will be available in certain markets. Alternative fuel specification (23% ethanol) is available in certain markets.
