Fuel System - TD4 Diesel
Fuel System - TD4 Diesel

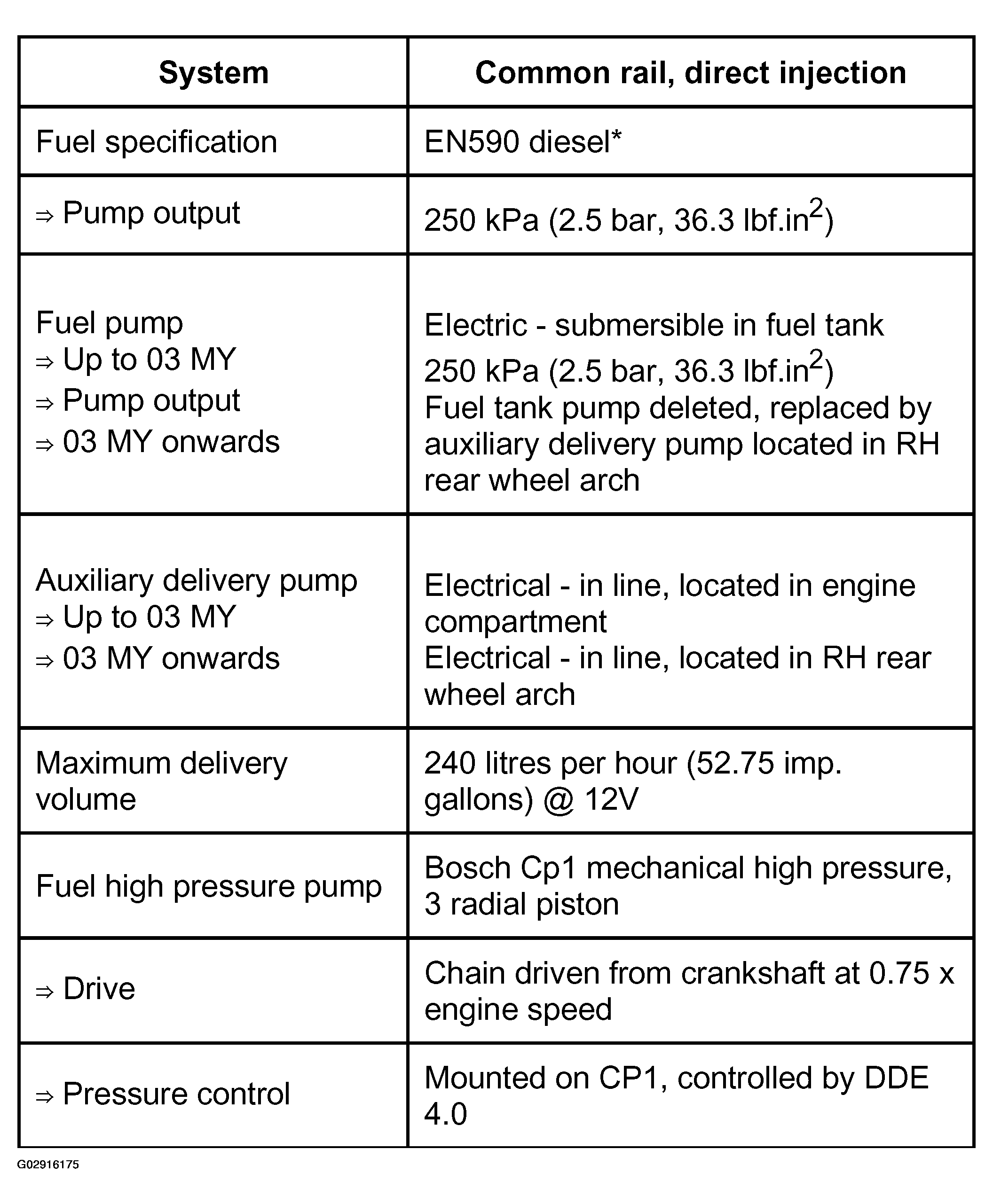

Fig 1: Fuel System Specification - Td4 Diesel (1 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

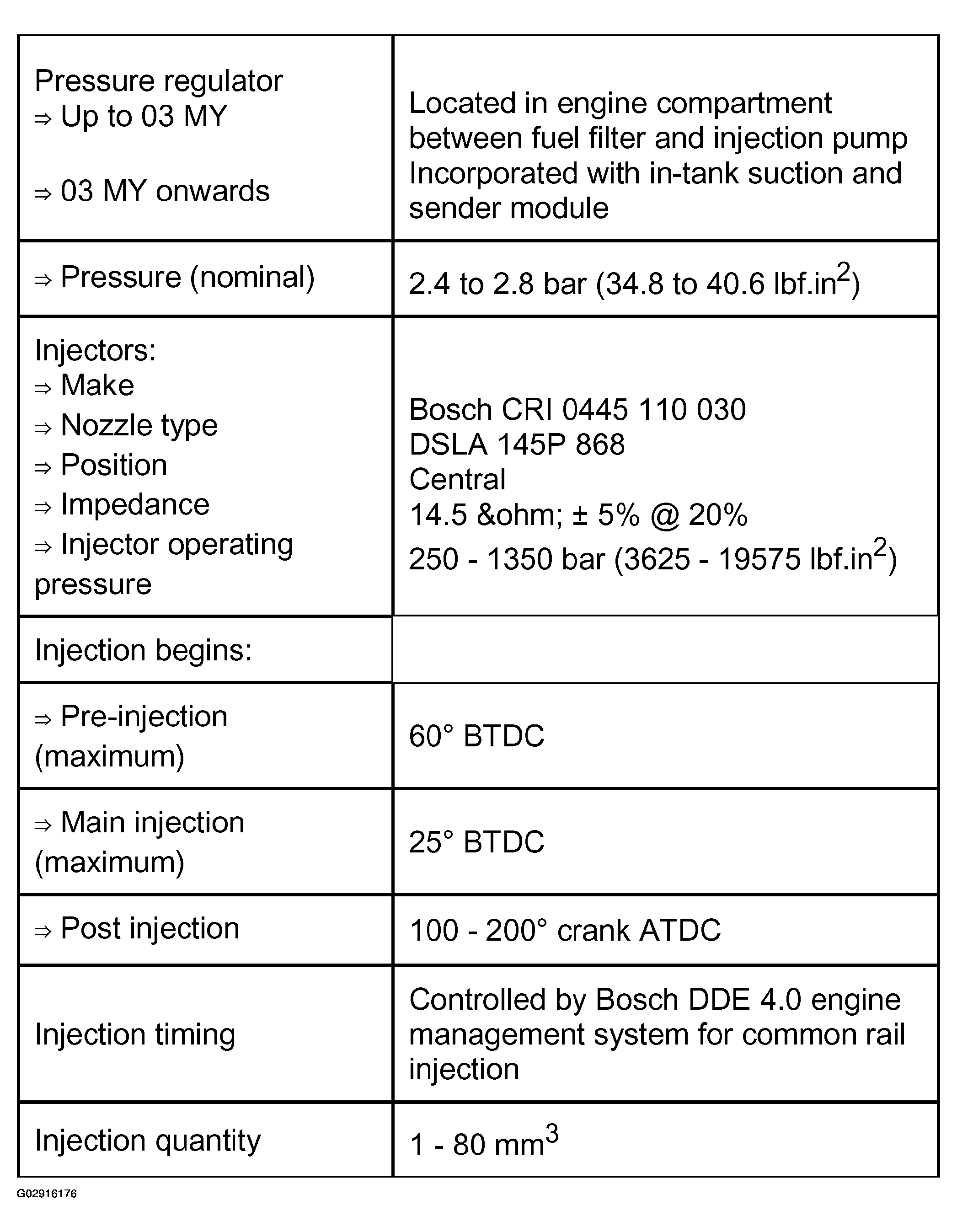

Fig 2: Fuel System Specification - Td4 Diesel (2 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

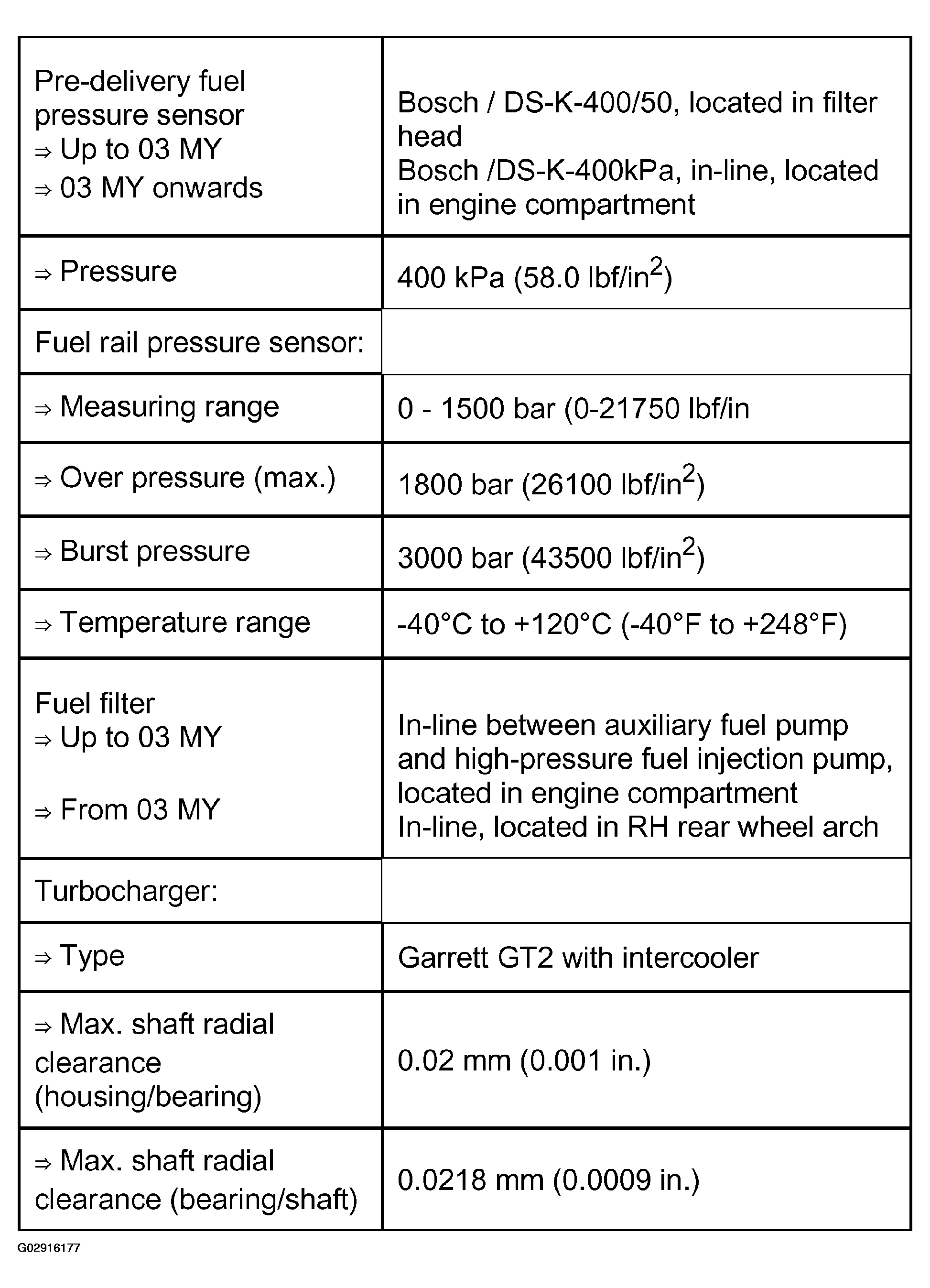

Fig 3: Fuel System Specification - Td4 Diesel (3 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

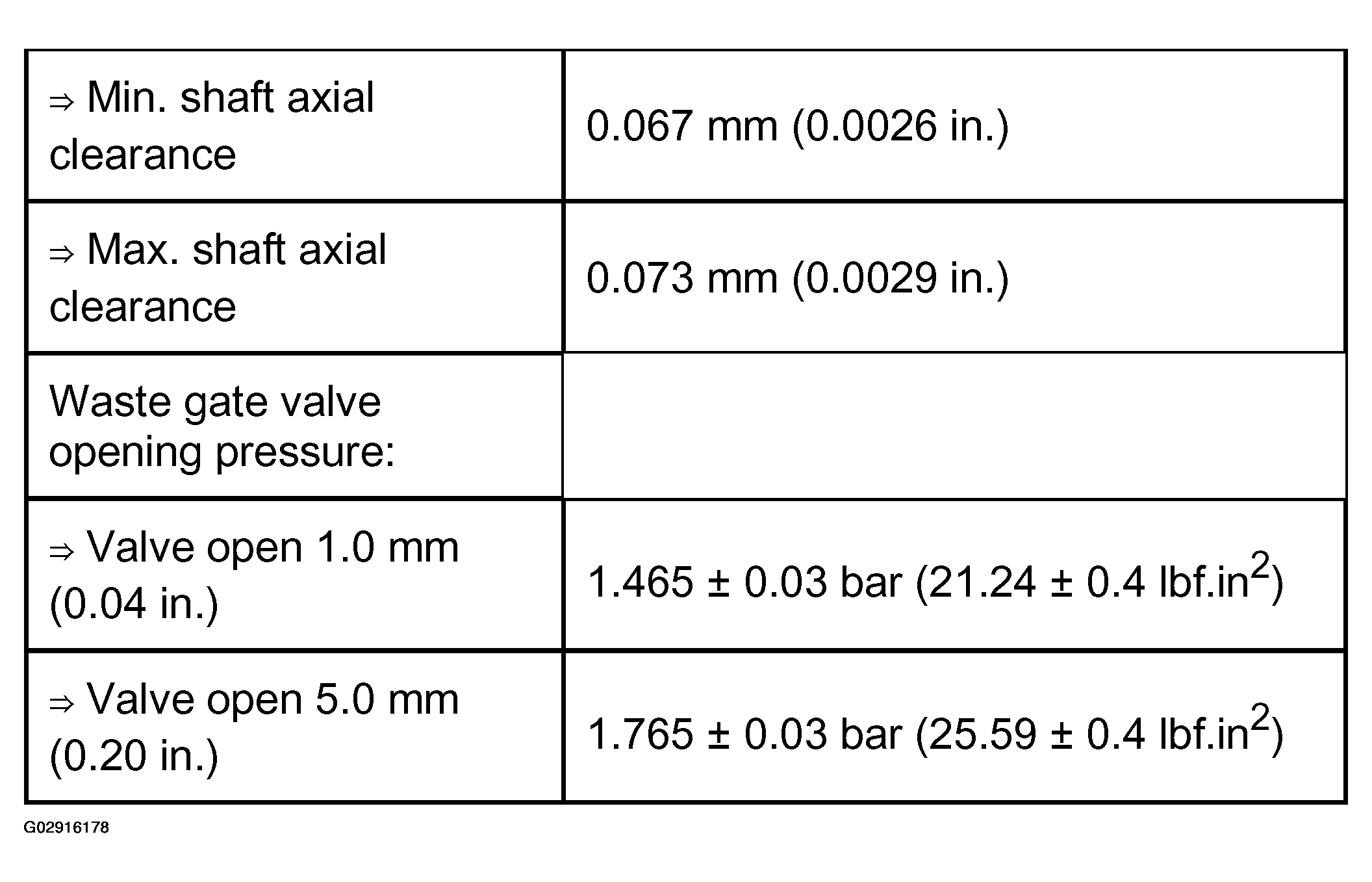

Fig 4: Fuel System Specification - Td4 Diesel (4 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
