lemon-mirror
:
Home
>>
Land Rover
>>
2002
>>
Freelander S
>>
Repair and Diagnosis
>>
Engine Performance
>>
Specifications
>>
General Data
>>
Manual Gearbox - Pg1
Manual Gearbox - Pg1

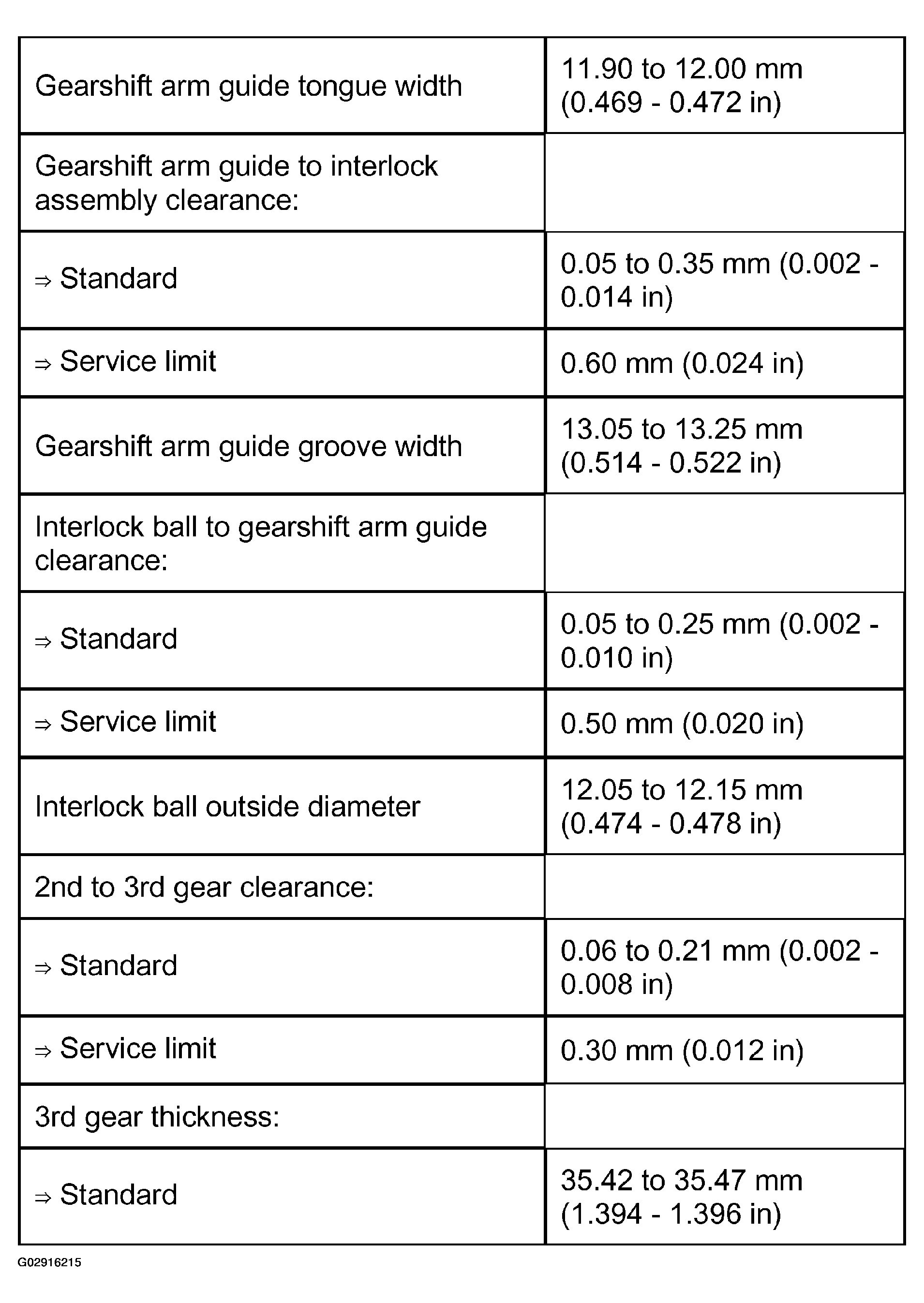

Fig 1: Manual Gearbox - PG1 Specification (1 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

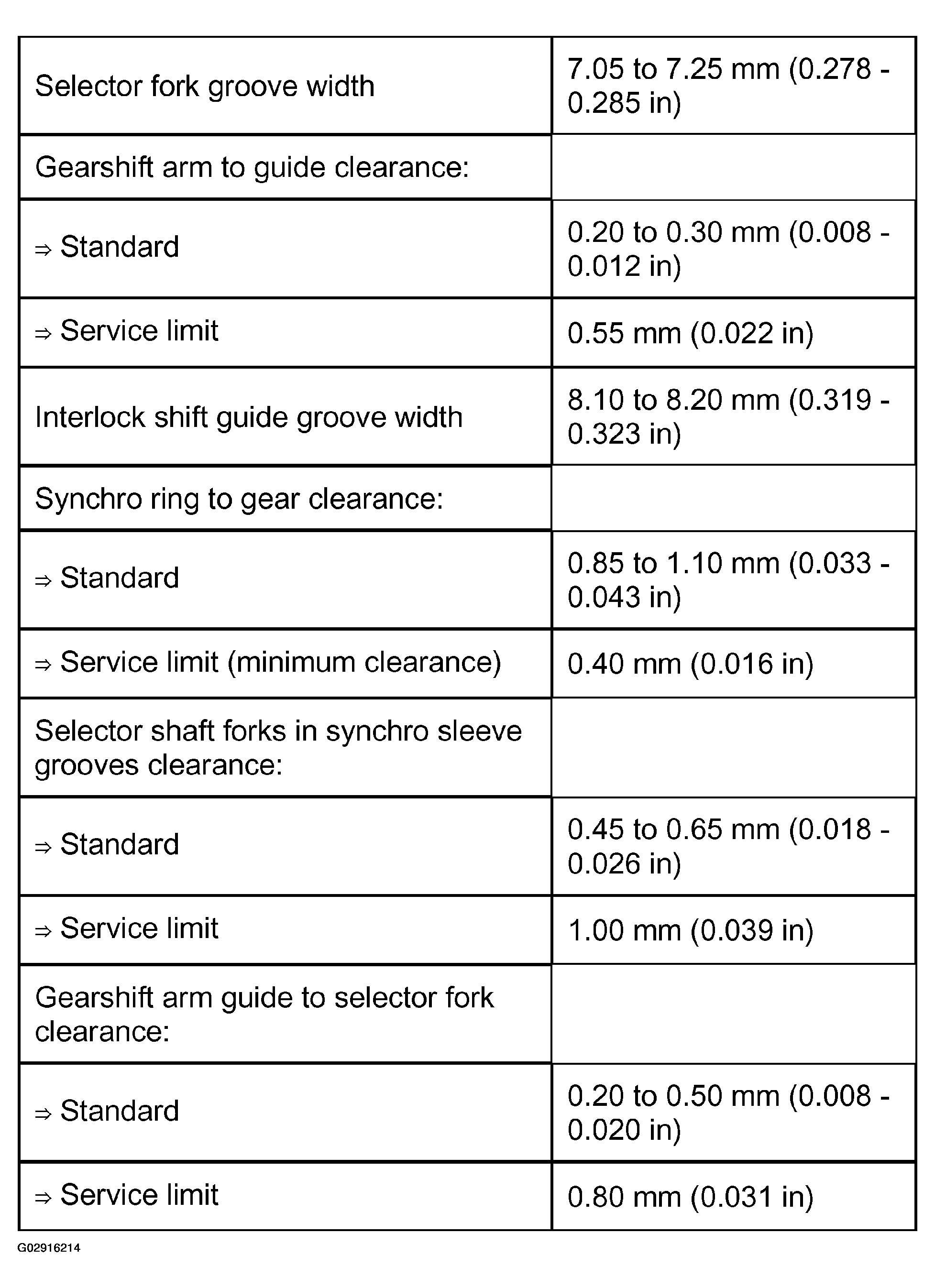

Fig 2: Manual Gearbox - PG1 Specification (2 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

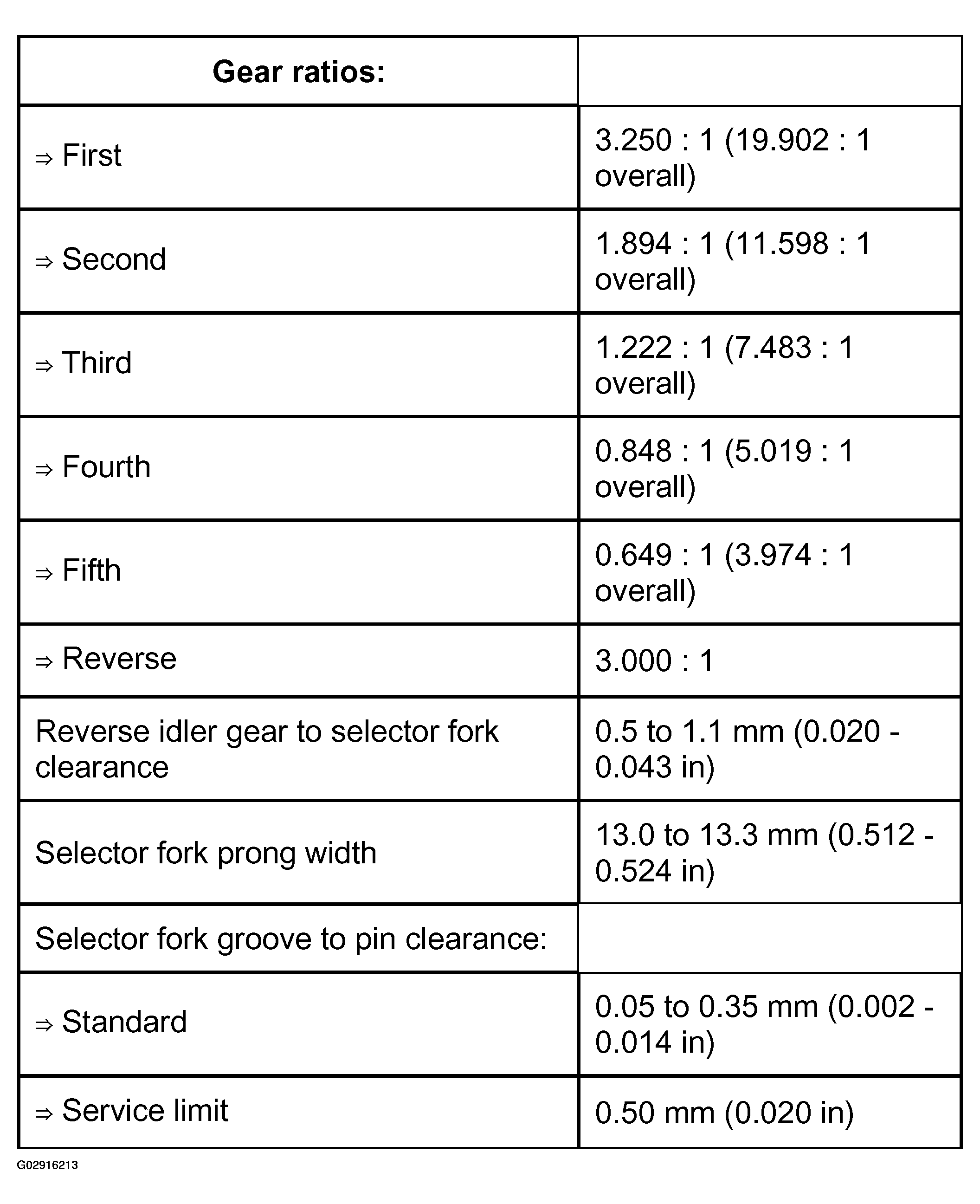

Fig 3: Manual Gearbox - PG1 Specification (3 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

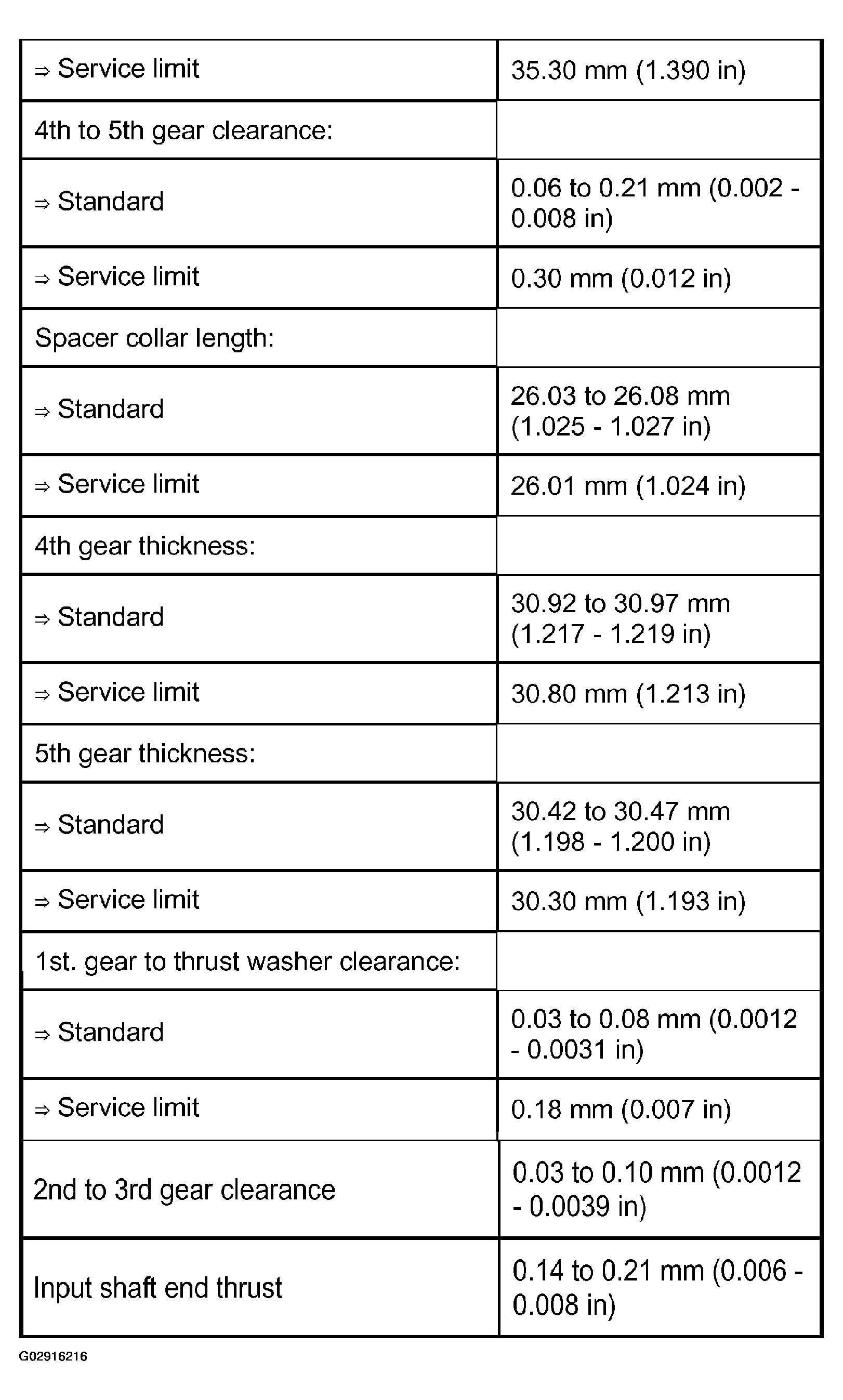

Fig 4: Manual Gearbox - PG1 Specification (4 of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
