Engine Controls - Tests W/Codes
>>
Code 12: Rpm Signal
Code 12: Rpm Signal

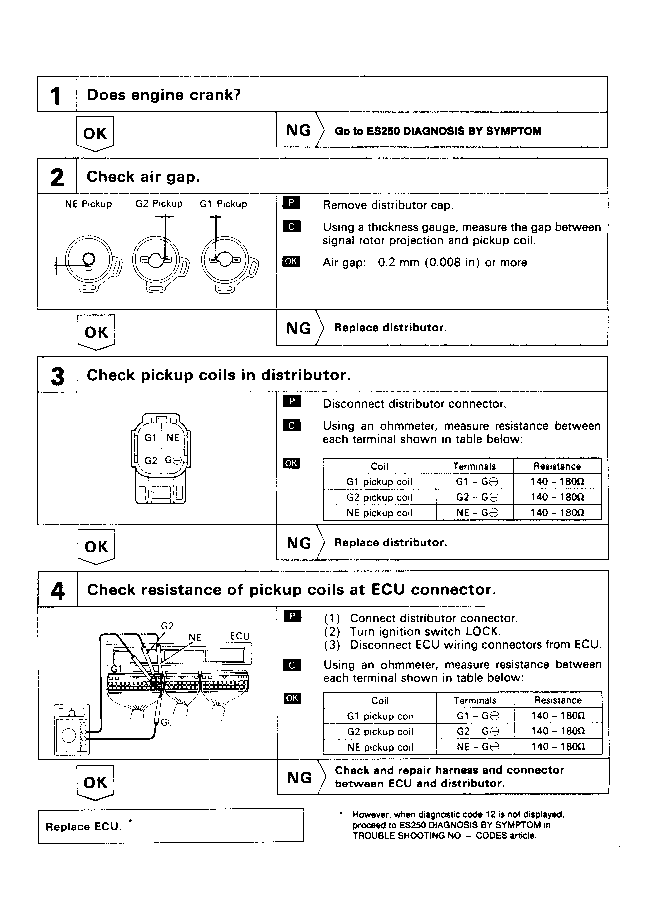

Fig 1: Code 12: RPM Signal Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
