Lexus
>>
1990
>>
ES 250 Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Code 13: Rpm Signal
Code 13: Rpm Signal

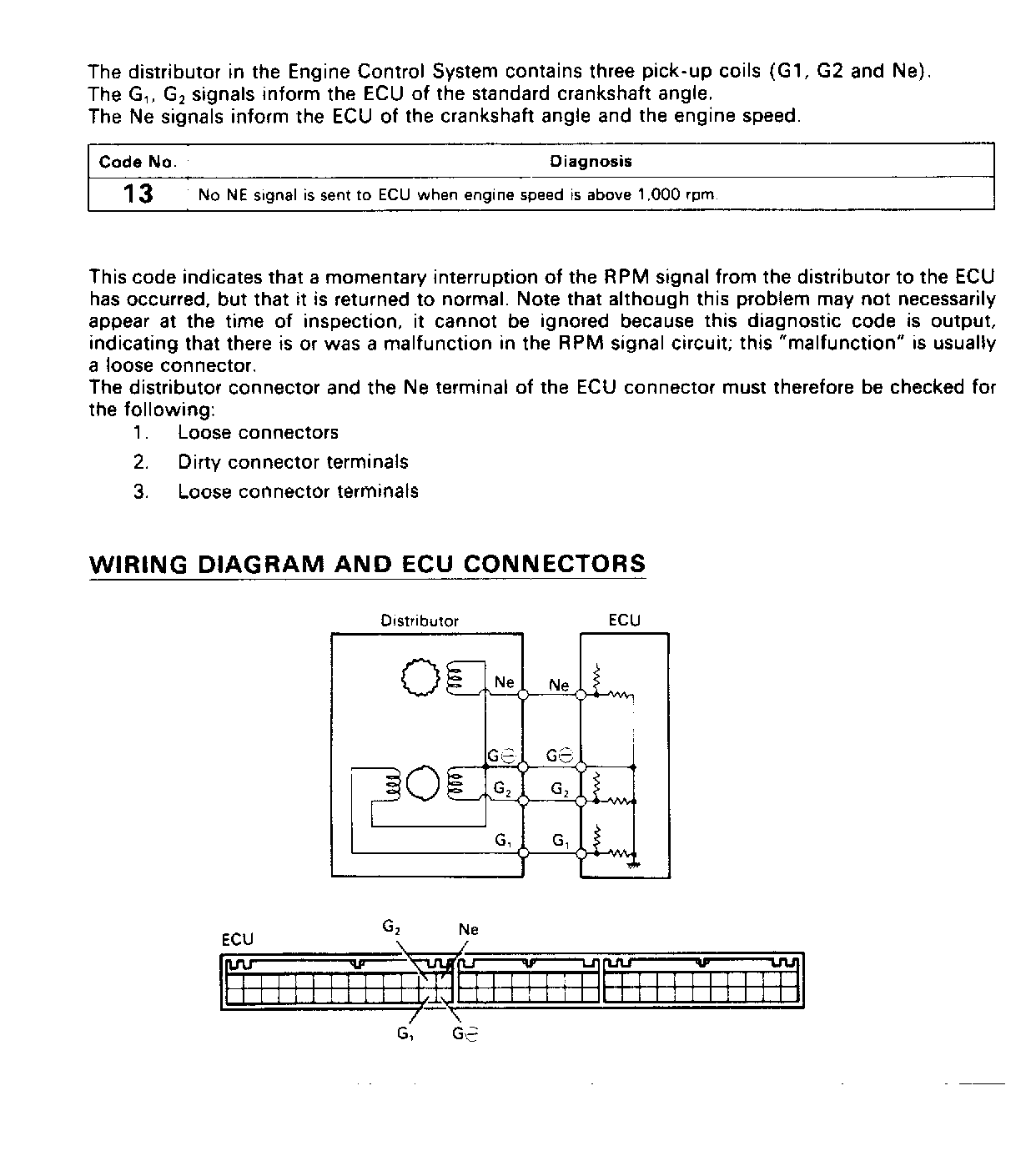

Fig 1: Code 13: RPM Signal Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
