Code 22: Water Temperature Sensor Signal
Code 22: Water Temperature Sensor Signal

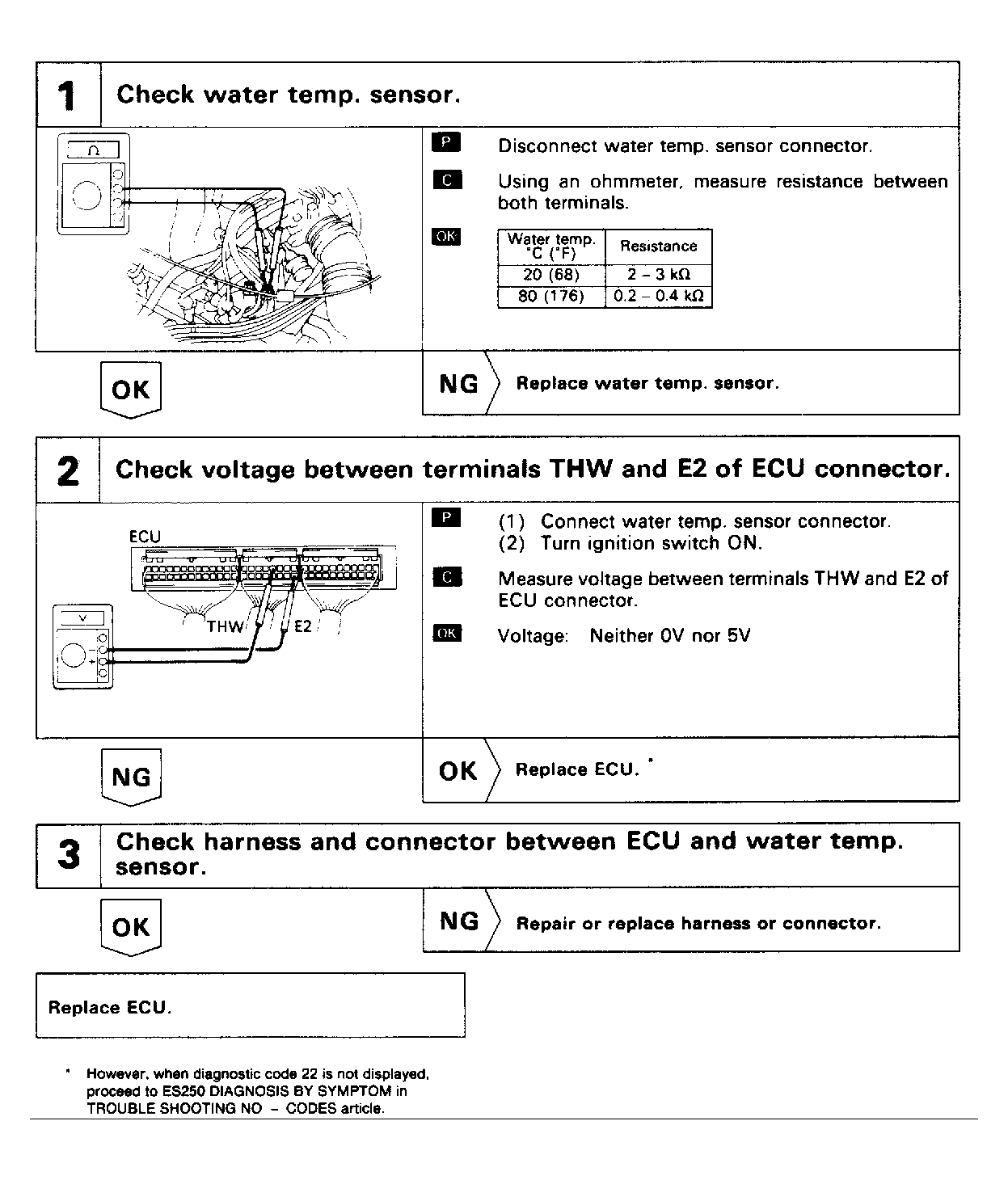

Fig 1: Code 22: Water Temp Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
