Connector Identification
Connector Identification

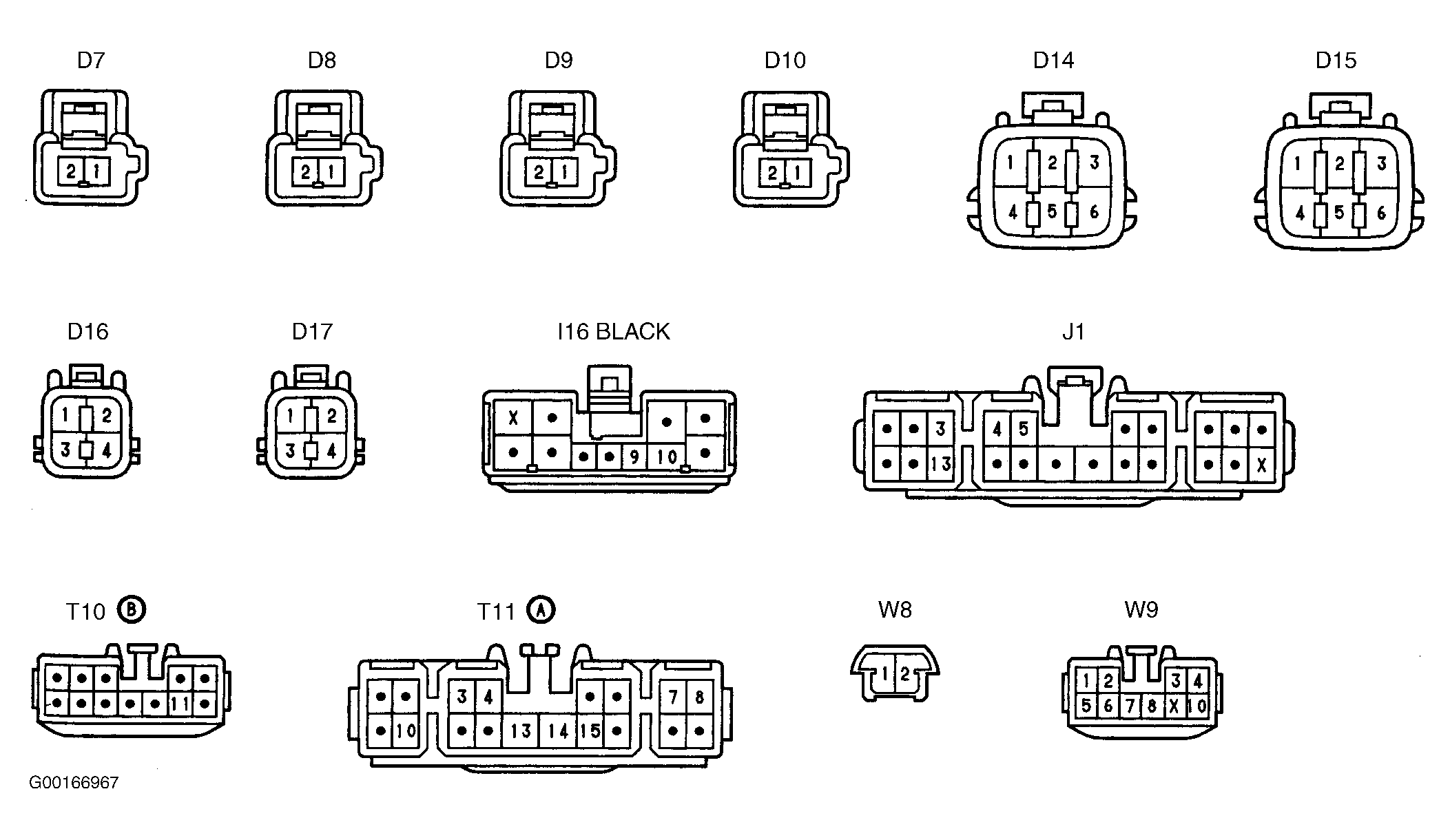

Fig 1: Remote Keyless Entry Connector Views
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
