Test A: Transmitter Battery Capacity Check

NOTE: Preform this inspection only when transmitter is judged to be faulty in initial check.

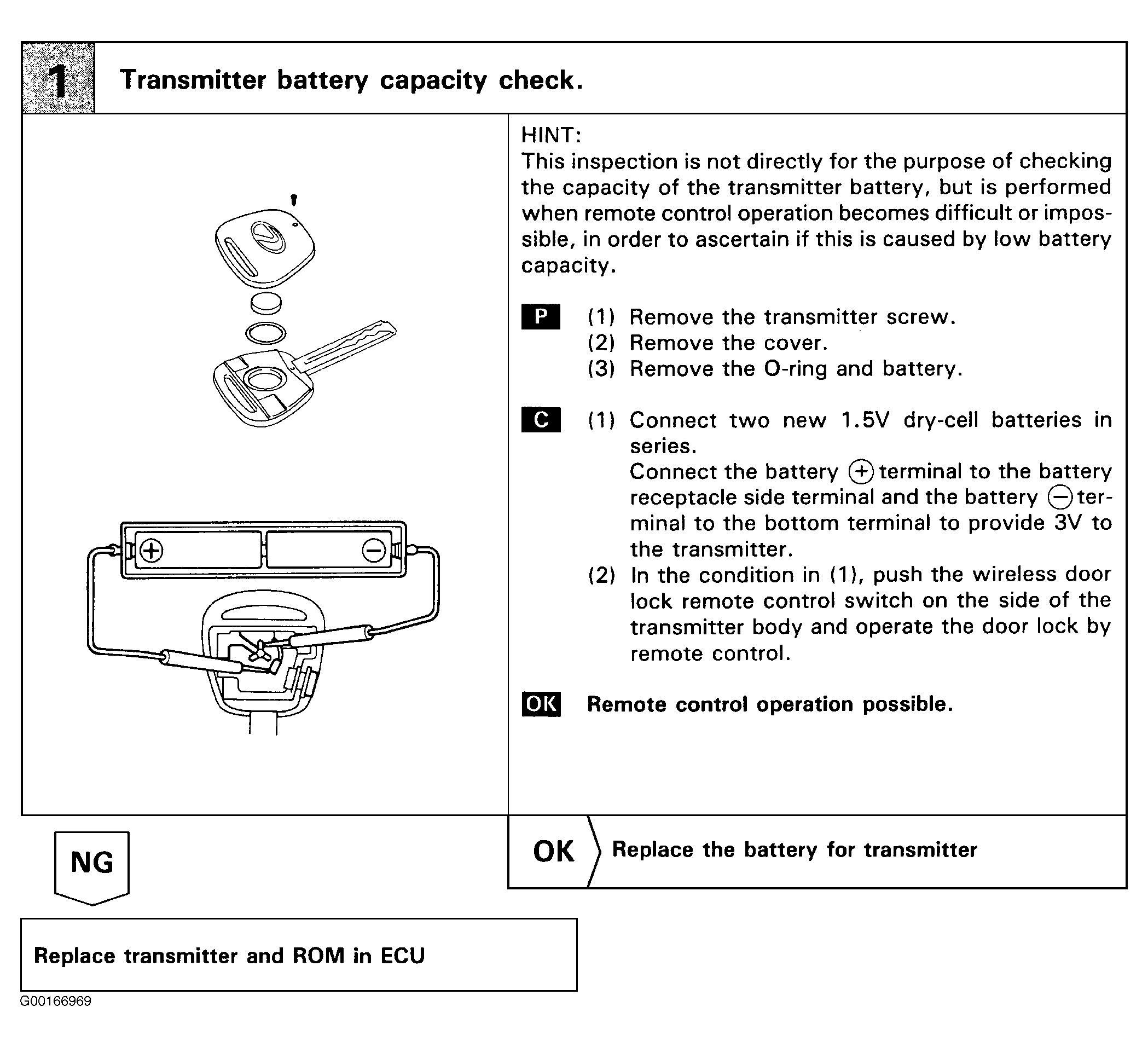

Fig 1: Transmitter Battery Capacity Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
