Door Locks
>>
Remote Keyless Entry
>>
Wiring Diagrams
Wiring Diagrams

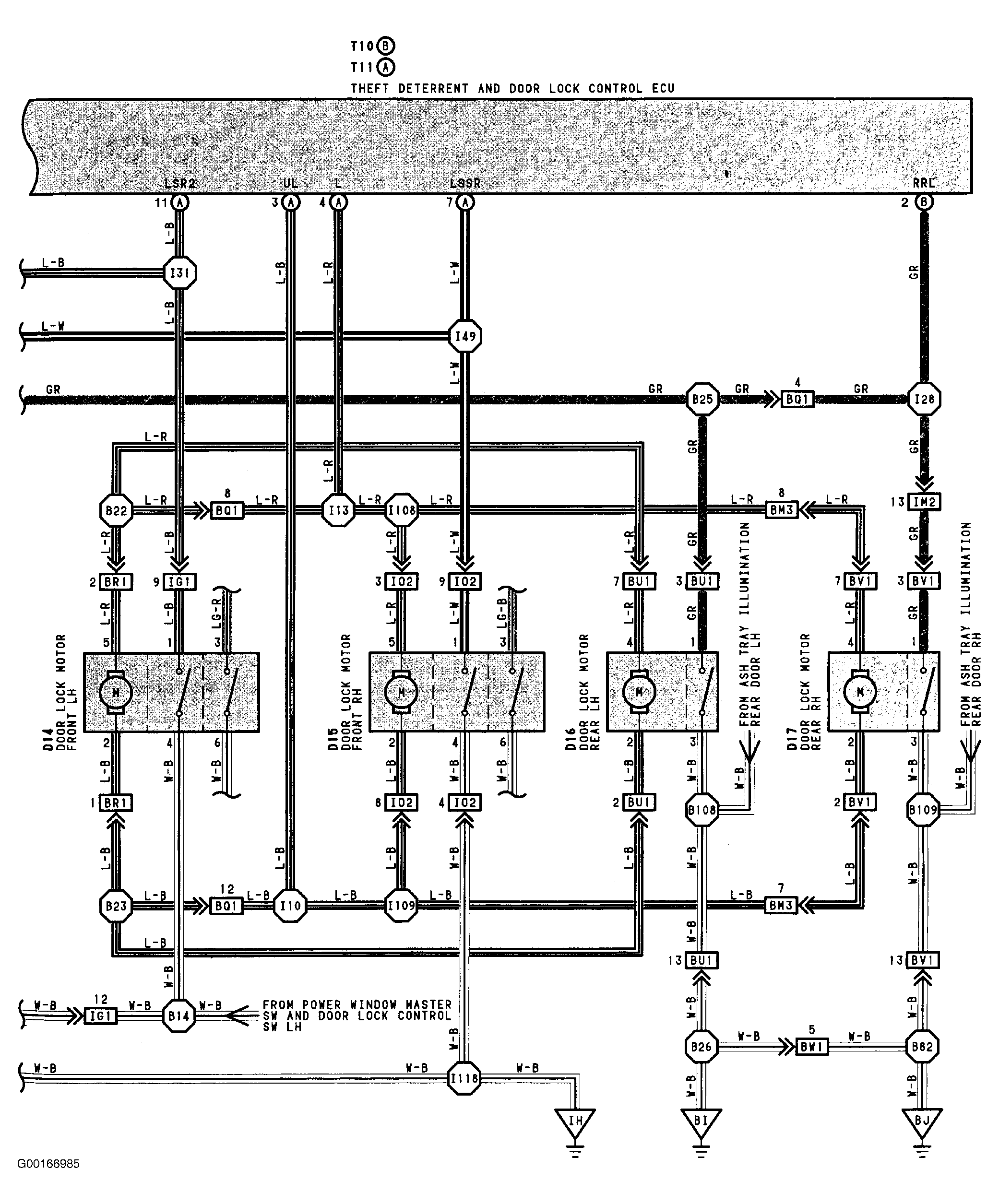

Fig 1: Wireless Door Lock Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

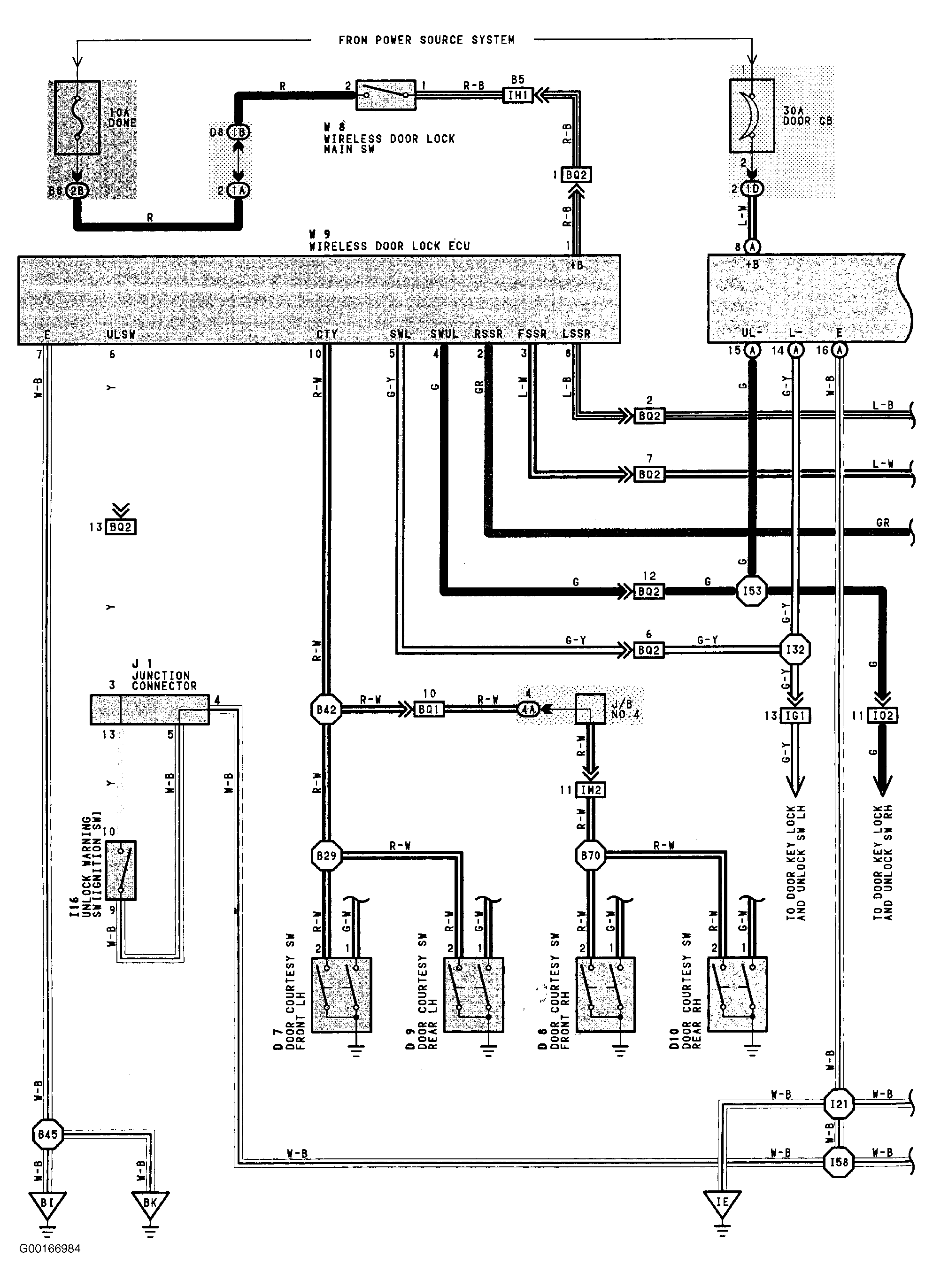

Fig 2: Wireless Door Lock Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
