Back-Up Power Source Circuit
Back-Up Power Source Circuit

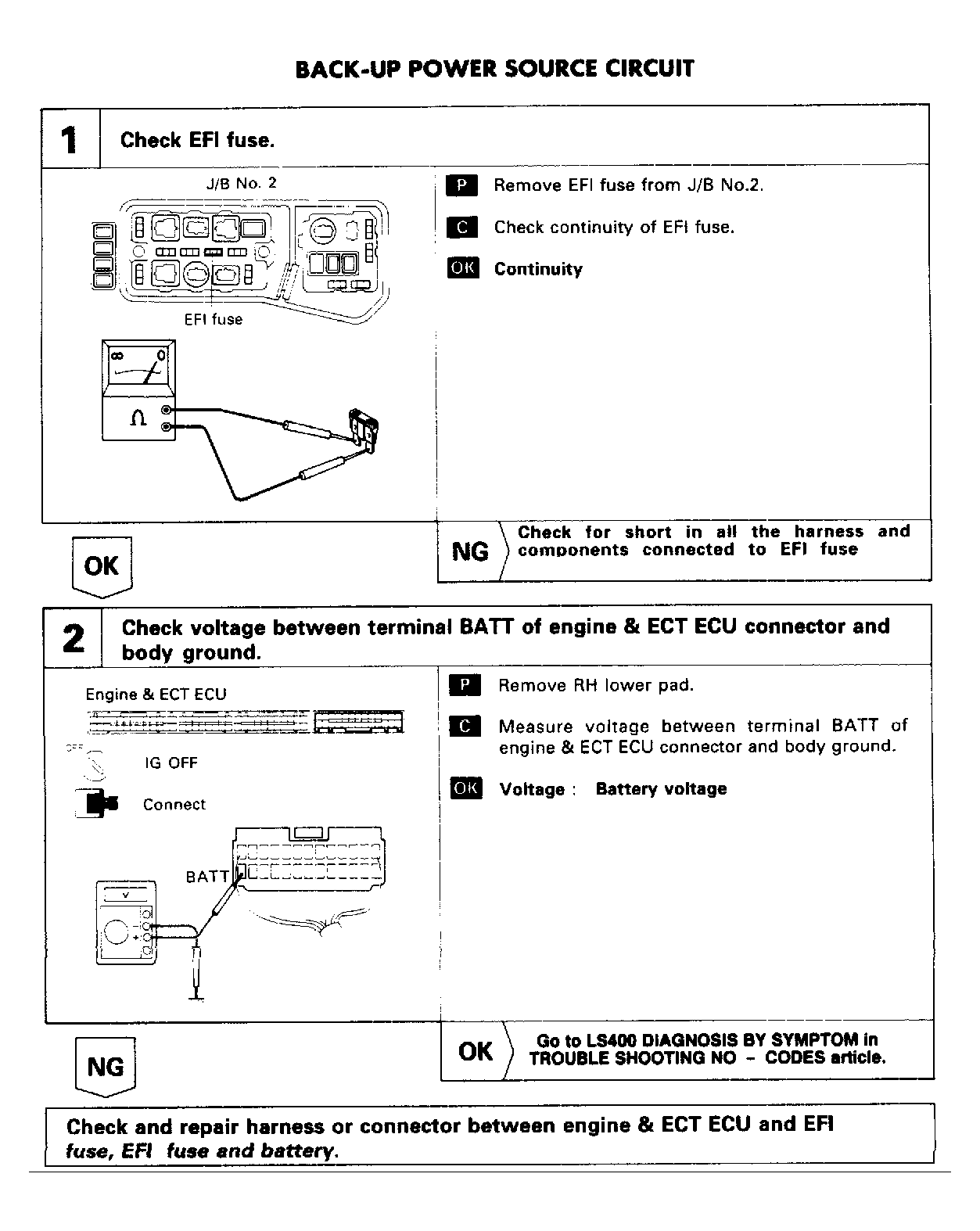

Fig 1: Back-up Power Source Circuit Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
