Code 24: Intake Air Temperature Sensor Signal
Code 24: Intake Air Temperature Sensor Signal

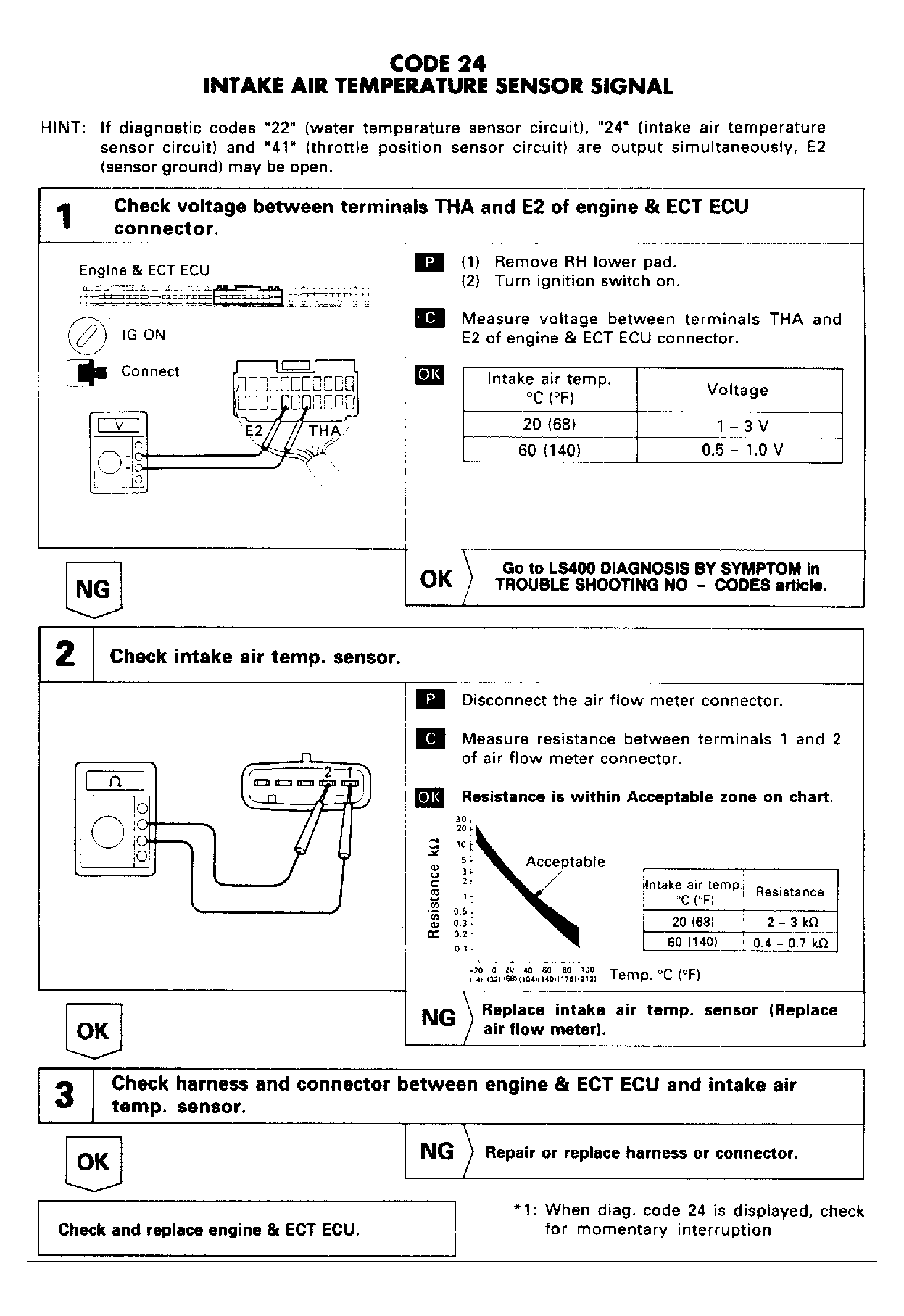

Fig 1: Code 24: Intake Air Temp Sensor Signal Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
