Code 29: Right Bank O2 Sensor Signal
Code 29: Right Bank O2 Sensor Signal

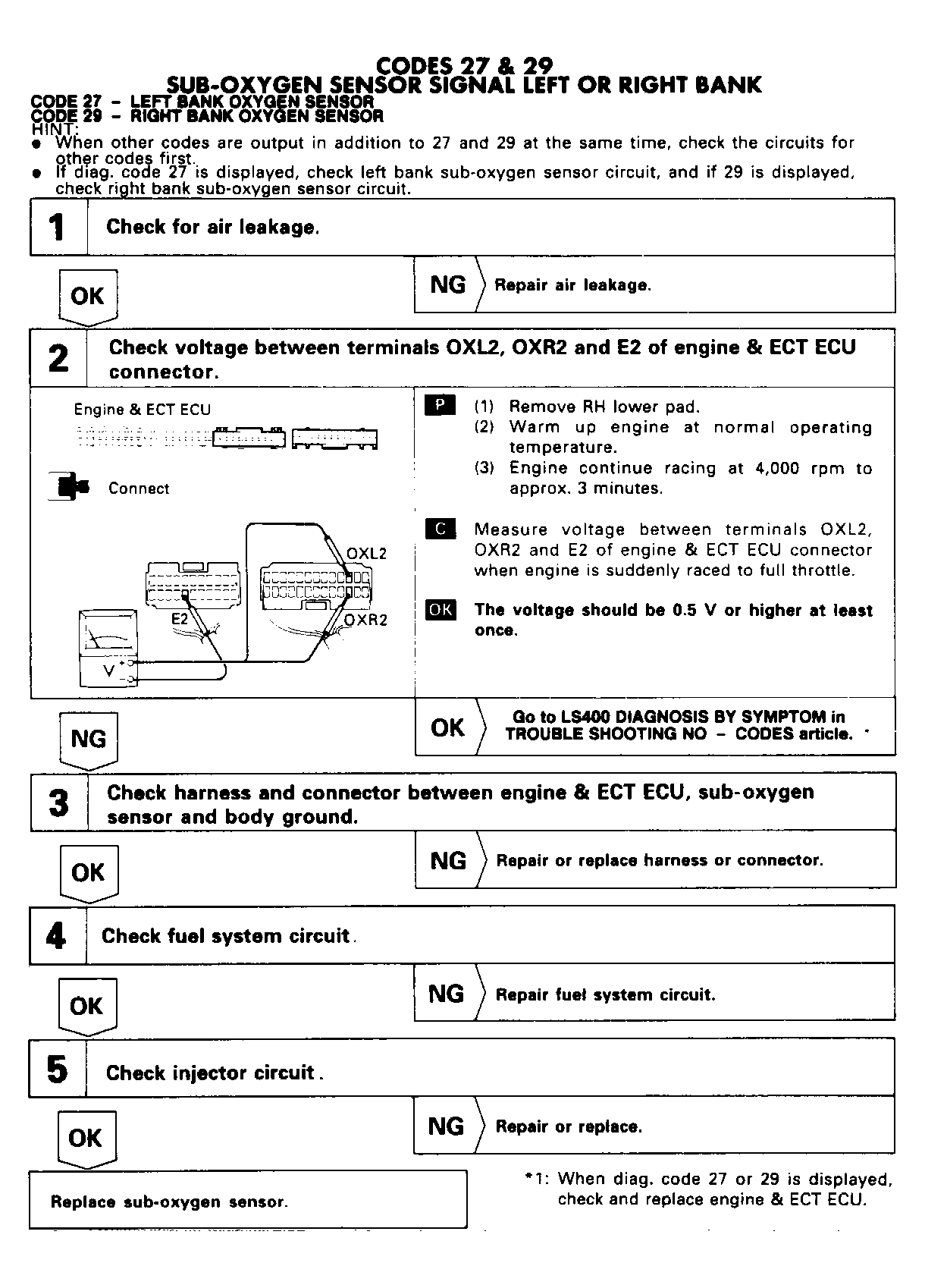

Fig 1: Code 29: Right Bank O2 Sensor Signal Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
