Engine Controls - Tests W/Codes
>>
Cold Start Injector Circuit
Cold Start Injector Circuit

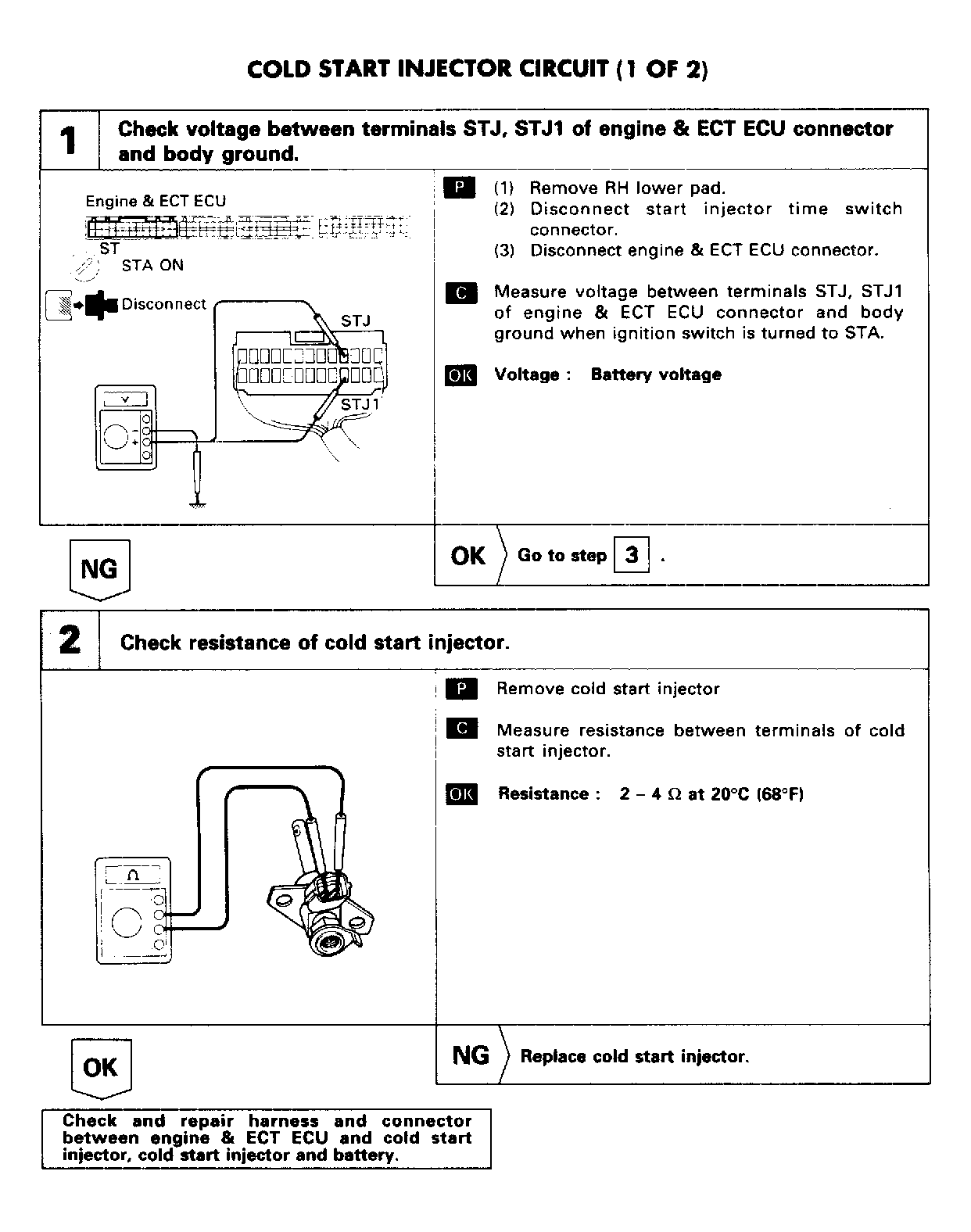

Fig 1: Cold Start Injector Circuit Chart (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

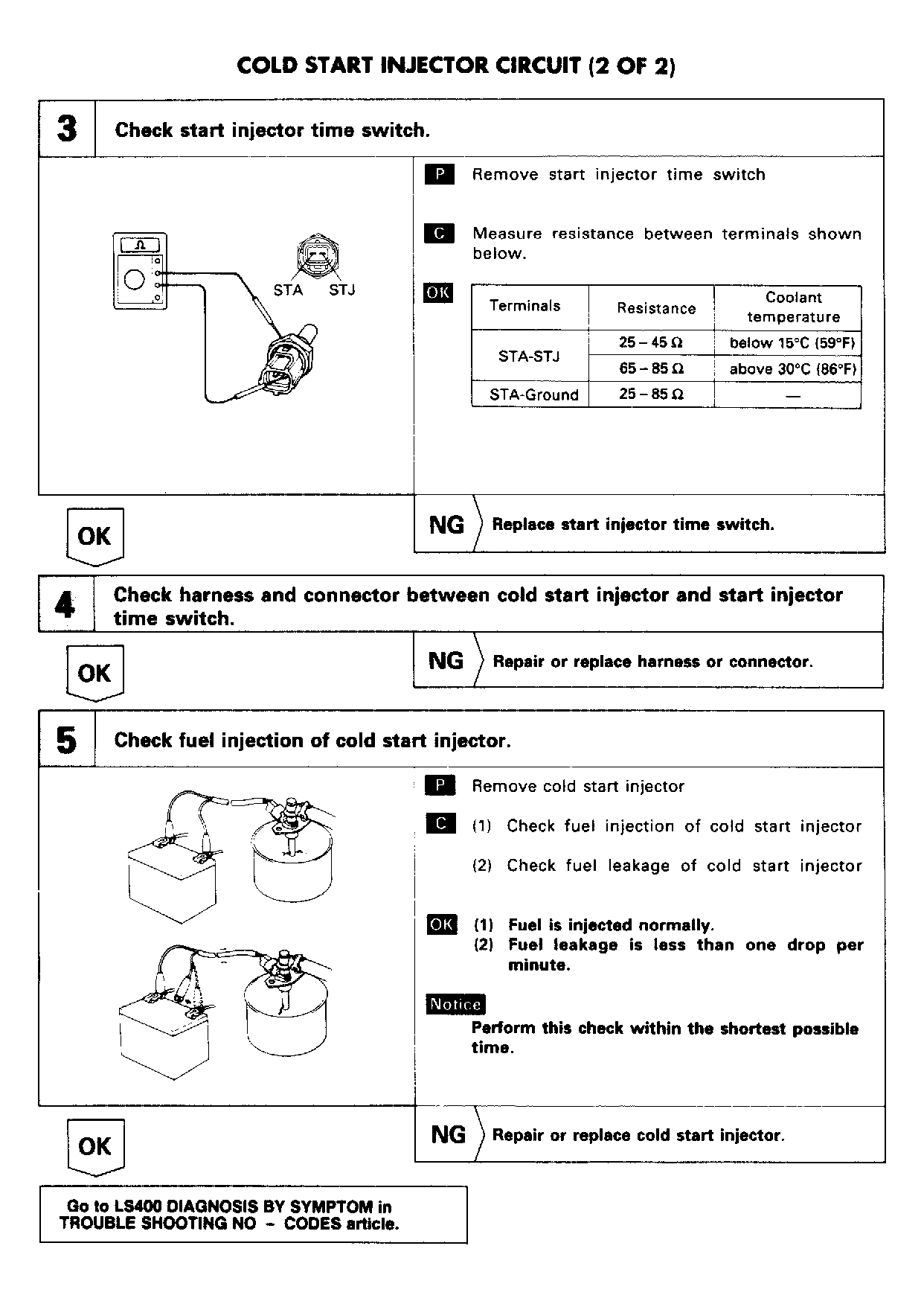

Fig 2: Cold Start Injector Circuit Chart (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
