Ecu Power Source Circuit

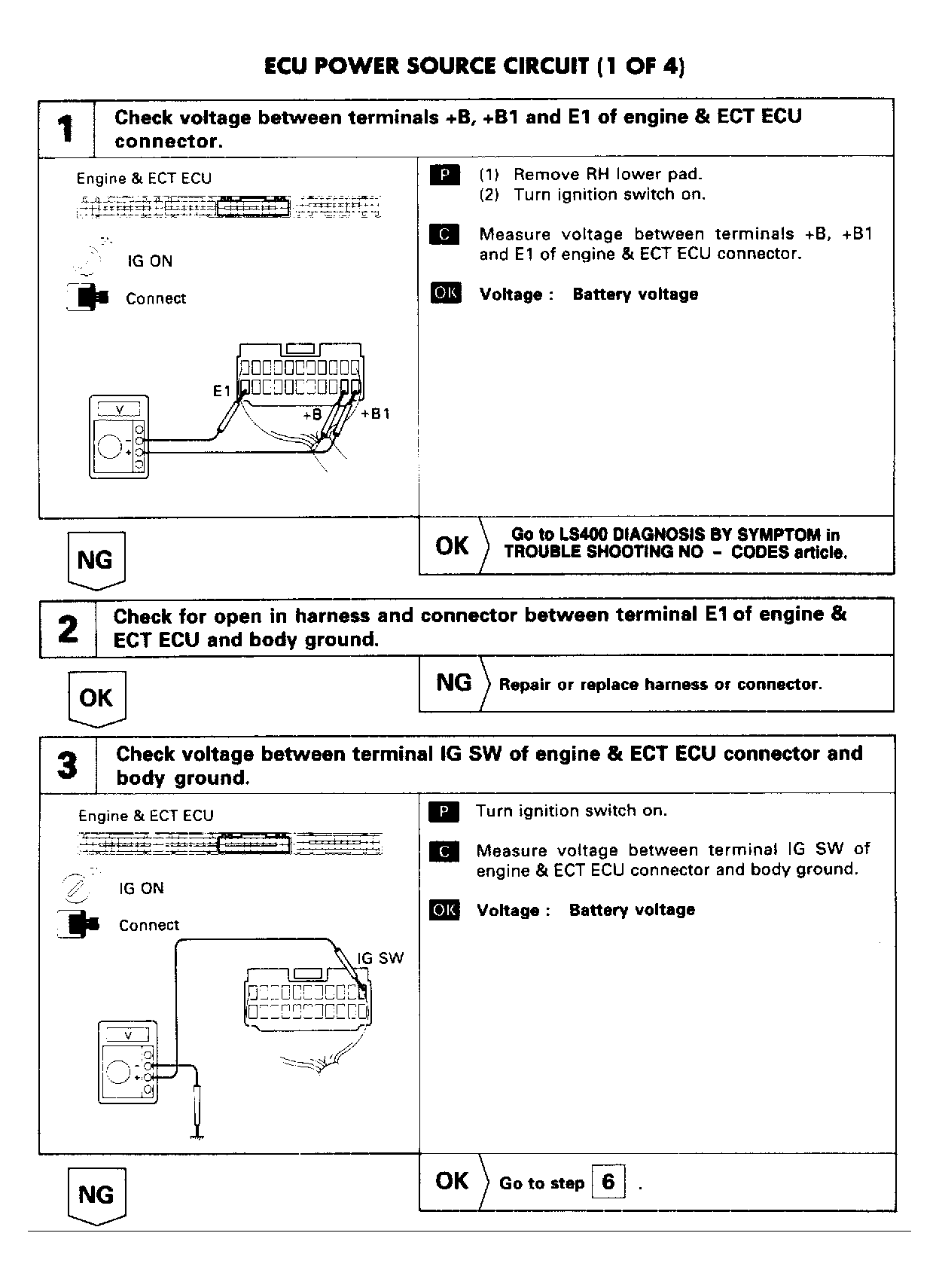

Fig 1: ECU Power Source Circuit Steps 1-3 (1 of 4)
G90E18956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

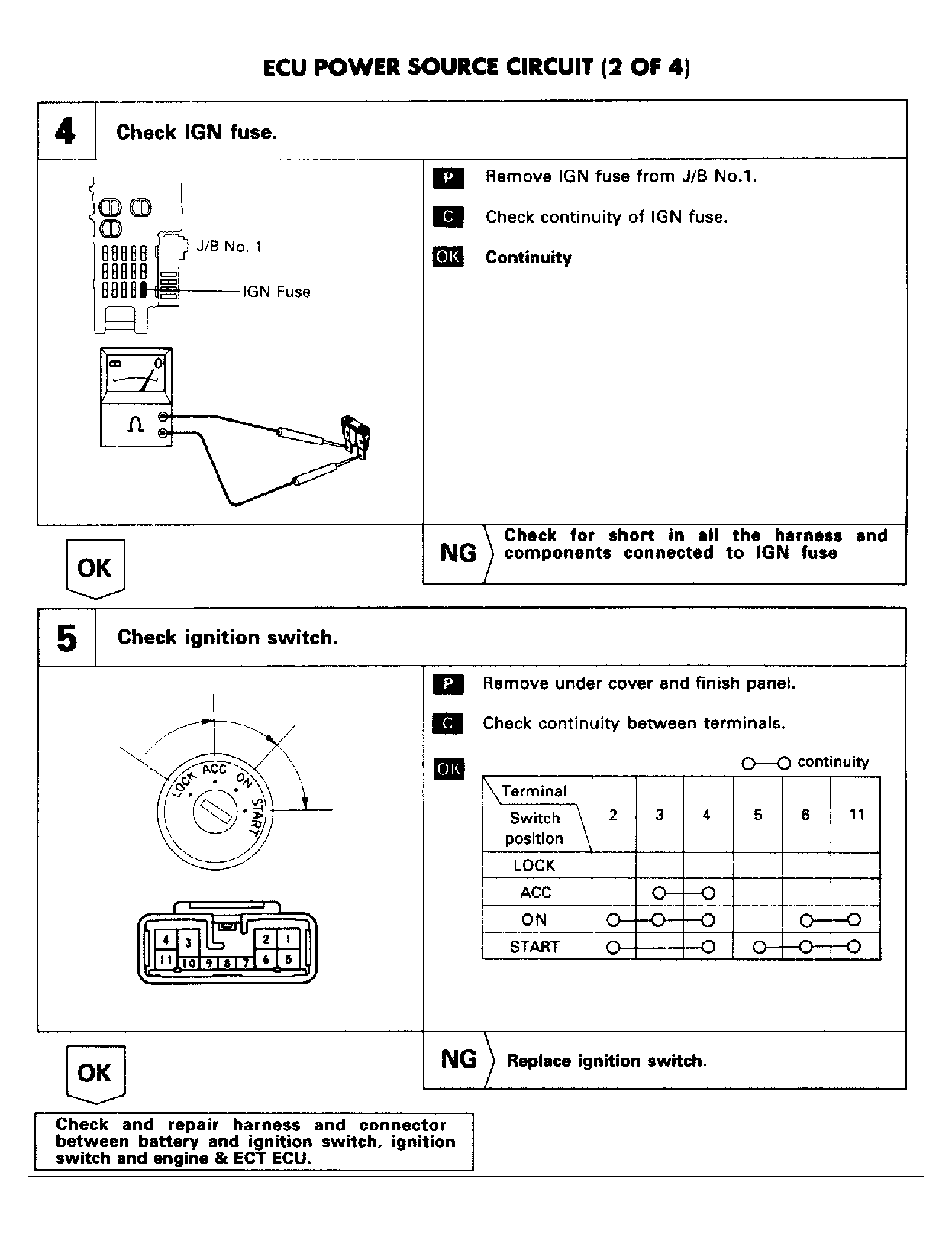

Fig 2: ECU Power Source Circuit Steps 4 & 5 (2 of 4)
G90F18957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

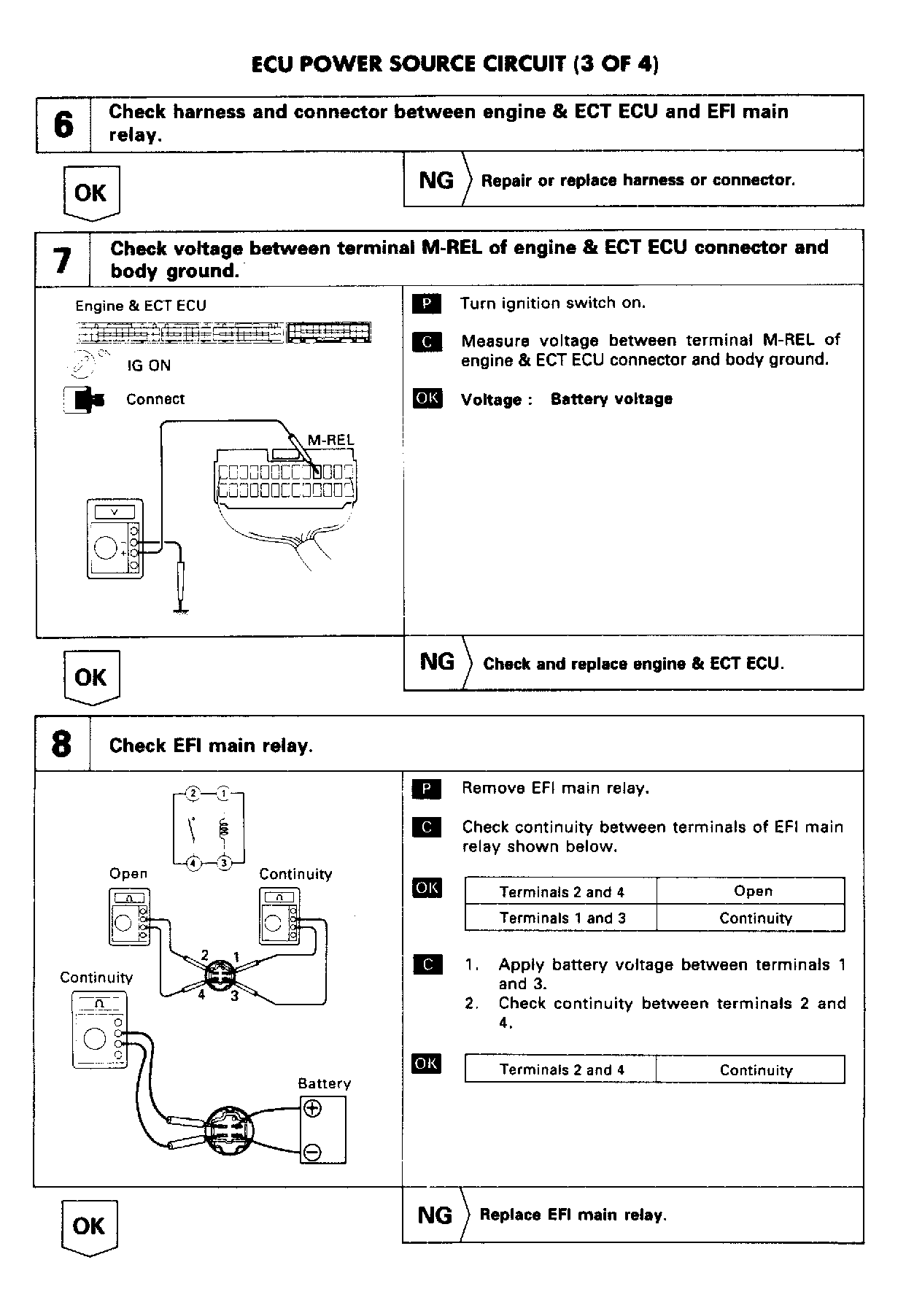

Fig 3: ECU Power Source Circuit Steps 6-8 (3 of 4)
G90G18958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

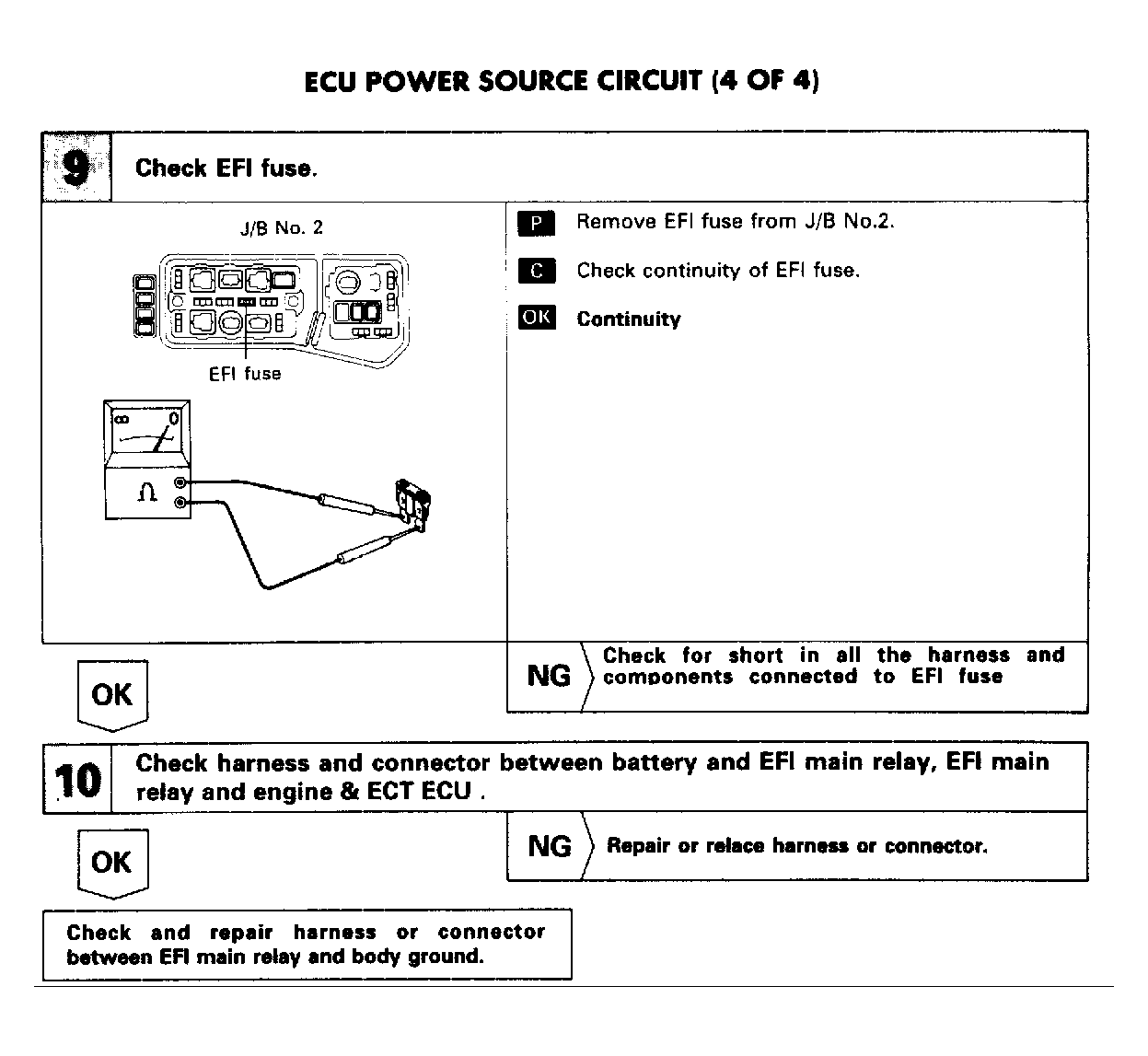

Fig 4: ECU Power Source Circuit Steps 9 & 10 (4 of 4)
G90H18959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
