Main Throttle Position Sensor Signal

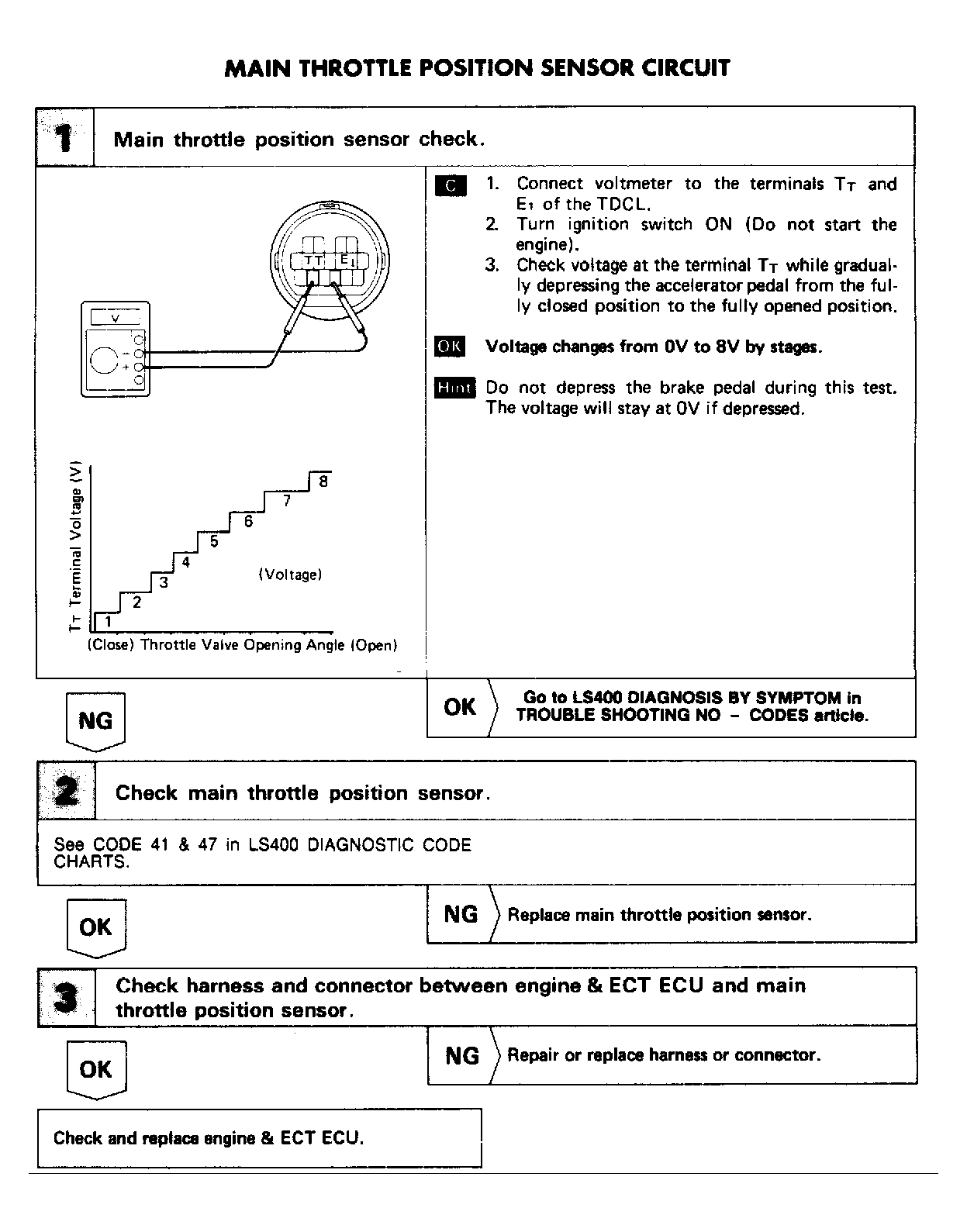

Fig 1: Main TPS Signal Chart
G90A18986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
