Home >> Lexus >> 1990 >> LS 400 >> Repair and Diagnosis >> Steering >> Steering Columns >> Removal & Installation >> Steering Column >> Notes

Steering Column: Notes

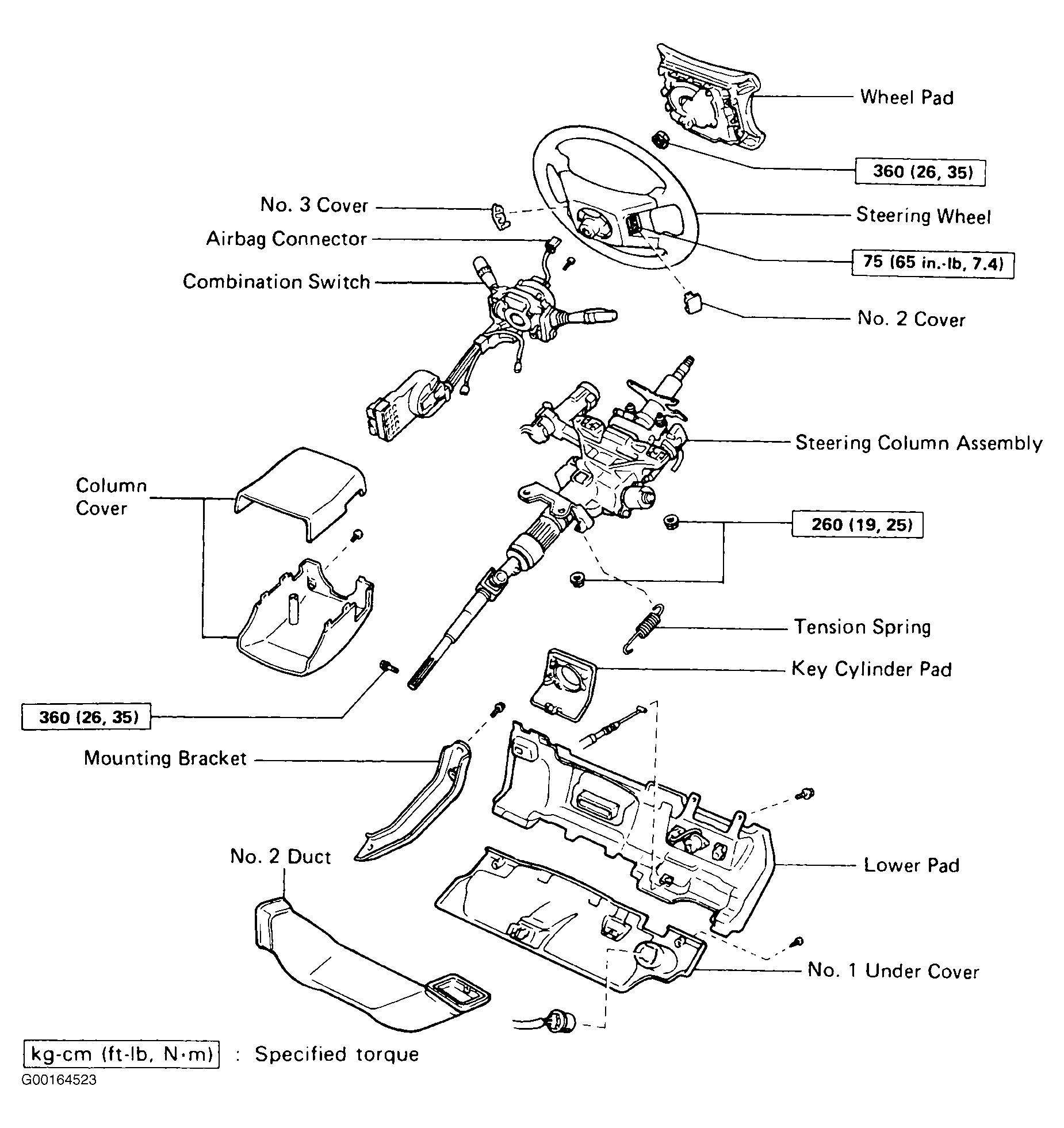

NOTE: Refer to Figure during removal and installation.
WARNING: When removing the wheel pad, take care not to pull the AIRBAG wire harness. When storing the wheel pad, keep the upper surface of the pad facing upward.
