Neutral Start Switch

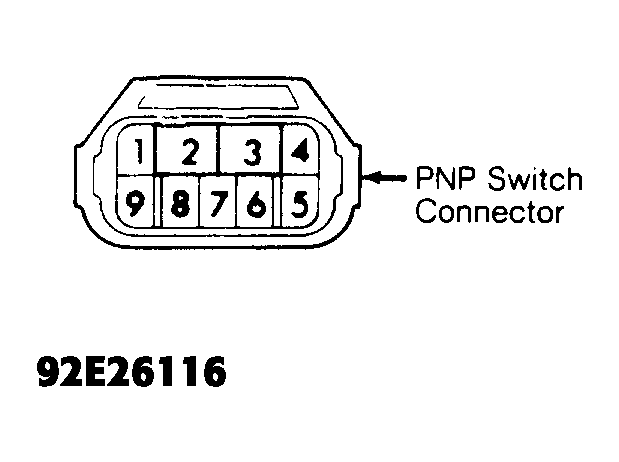

Neutral start switch is located on side of transaxle. Turn ignition off. Disconnect neutral start switch connector. Using a DVOM, check for continuity between terminals specified in appropriate NEUTRAL START SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace neutral start switch.
NEUTRAL START SWITCH CONTINUITY
| Range | Continuity Between Terminals |
|---|---|
| P | 2 & 3 |
| P | 9 & 1 |
| R | 9 & 4 |
| N | 2 & 3 |
| N | 9 & 6 |
| D | 9 & 5 |
| 2 | 9 & 7 |
| L | 9 & 8 |
