Code 14 - Ignition Signal Circuit

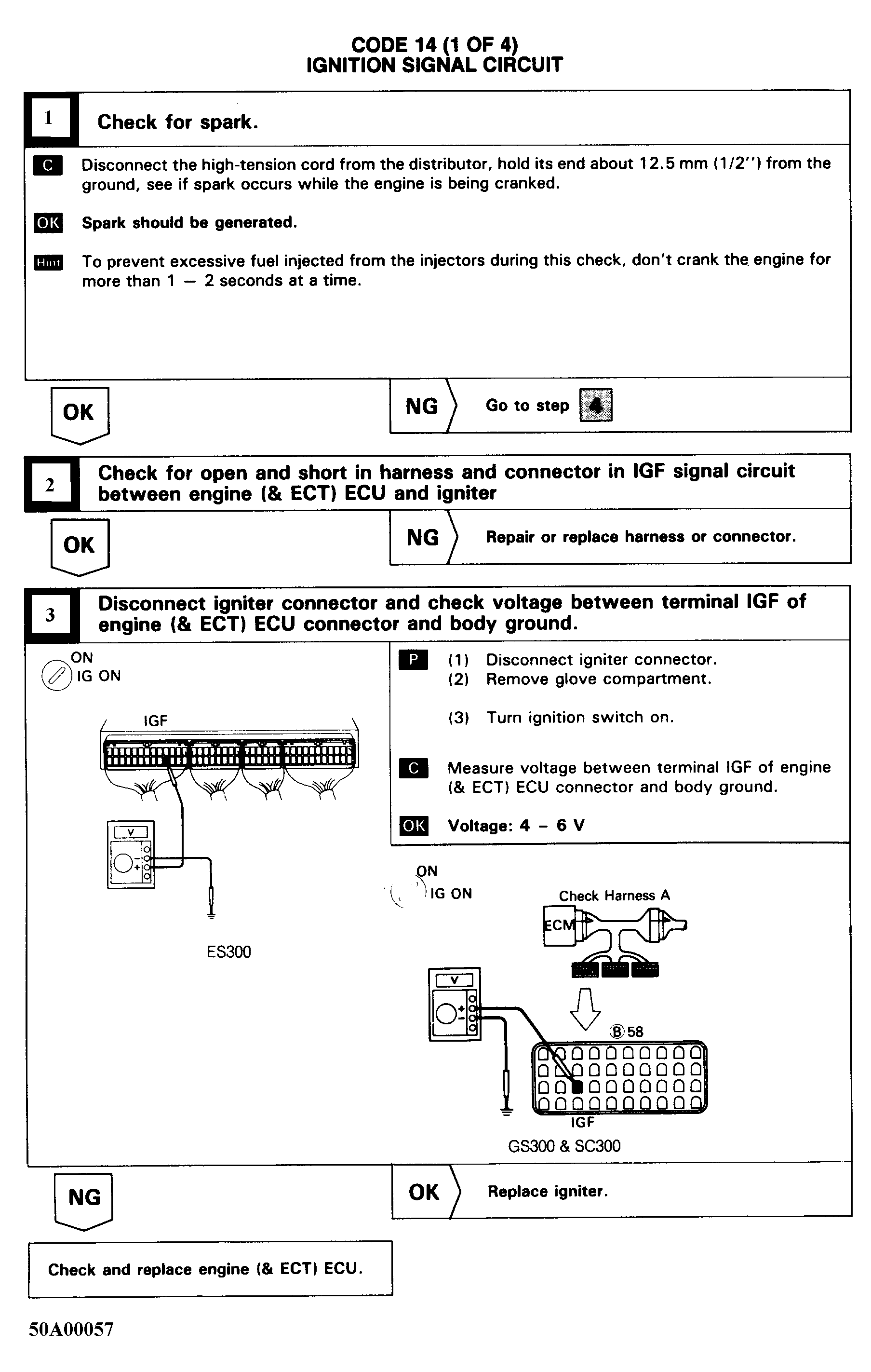

Fig 1: Code 14 - Diagnostic Flowchart (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

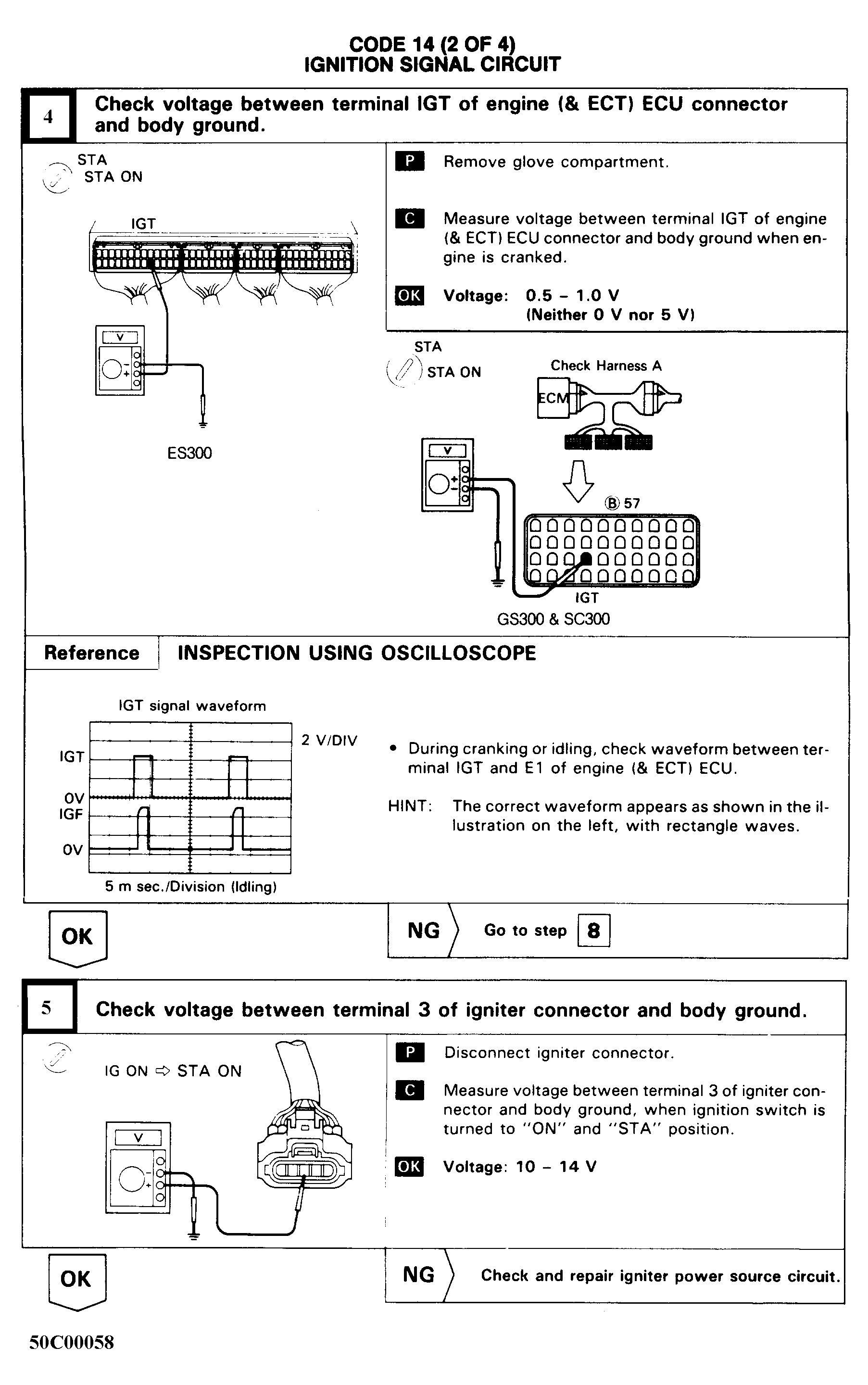

Fig 2: Code 14 - Diagnostic Flowchart (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 14 - Diagnostic Flowchart (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

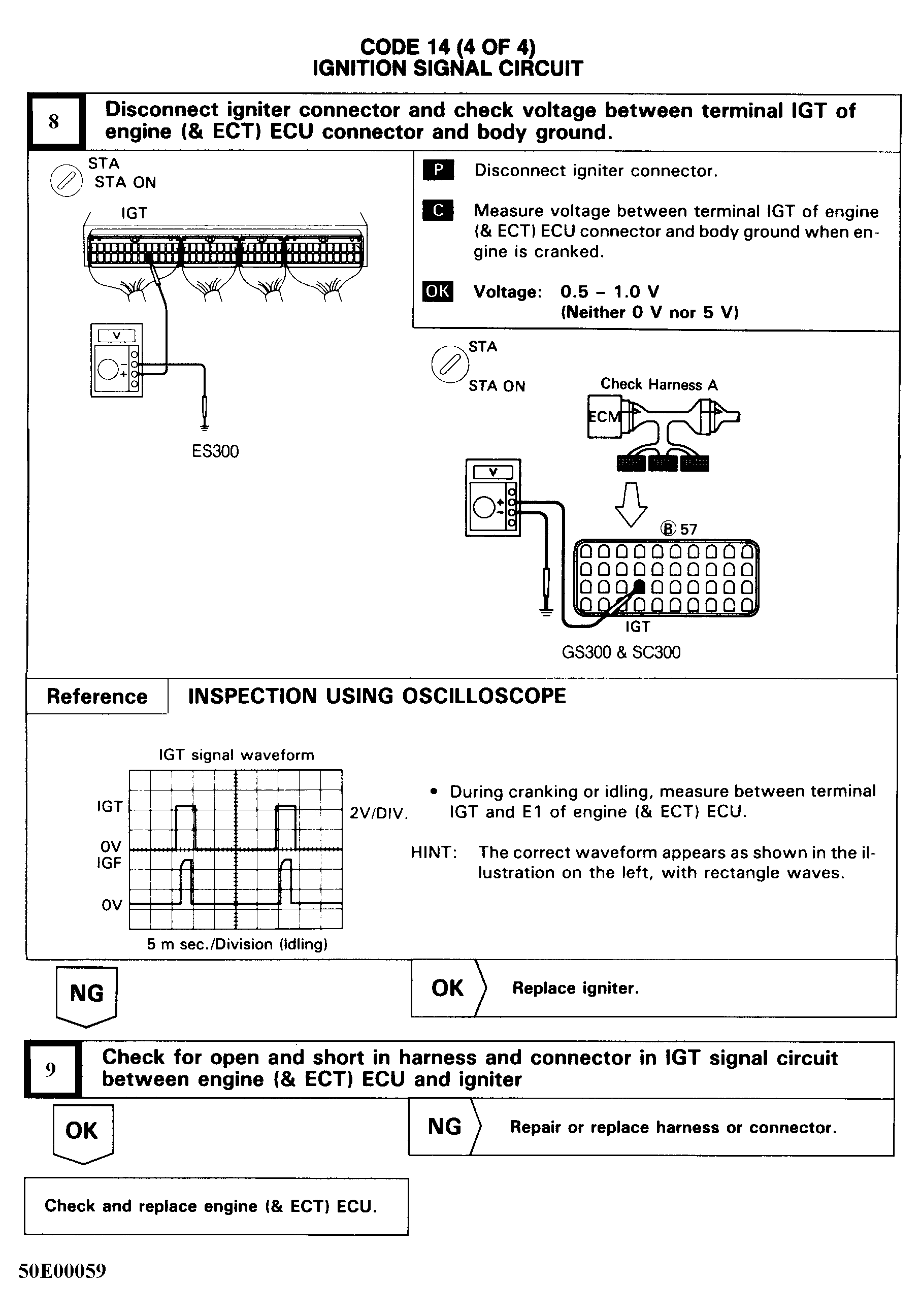

Fig 4: Code 14 - Diagnostic Flowchart (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
