Code 24 - Intake Air Temperature Sensor Signal Circuit

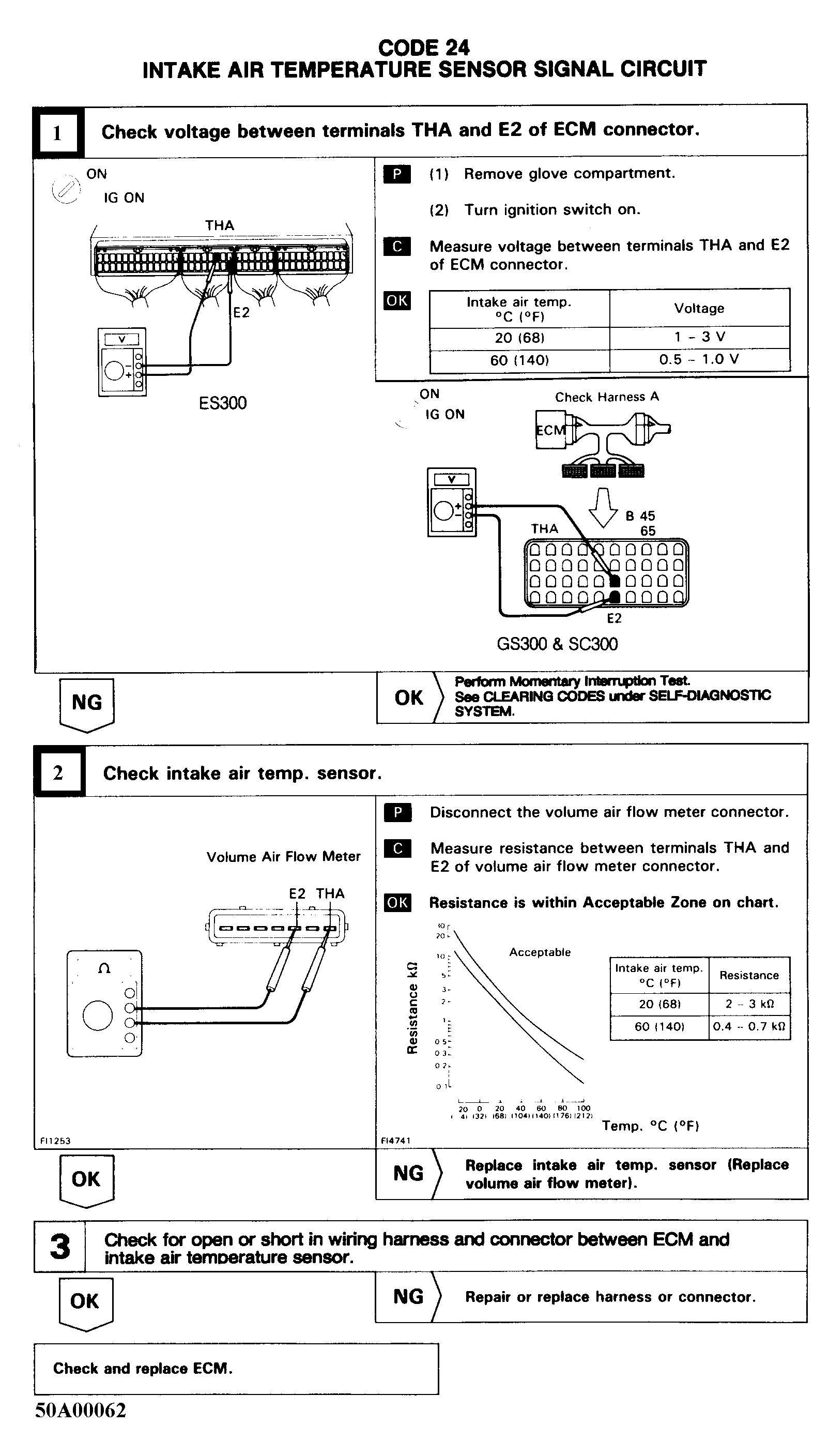

Fig 1: Code 24 - Diagnostic Flowchart
G50A00062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
