Clearing Codes

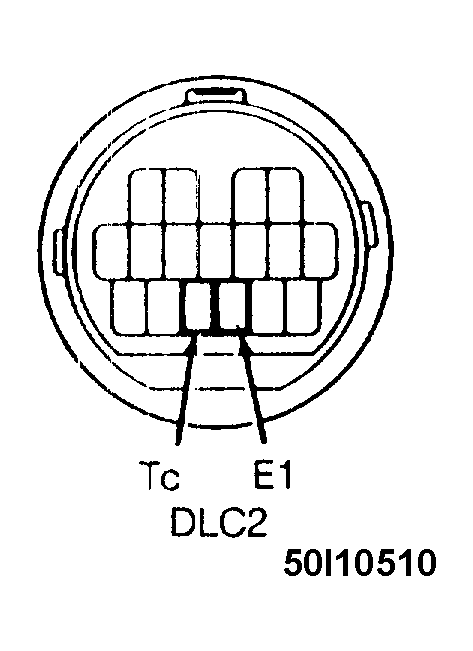

Turn ignition on. Using a jumper wire, connect DLC1 or DLC2 terminals Tc and E1. See Figure or Figure. With vehicle stopped, depress brake pedal 8 or more times within 3 seconds. Ensure TRAC indicator light turns on. Remove jumper wire. Codes are now erased.
