ACIS Vacuum Tank

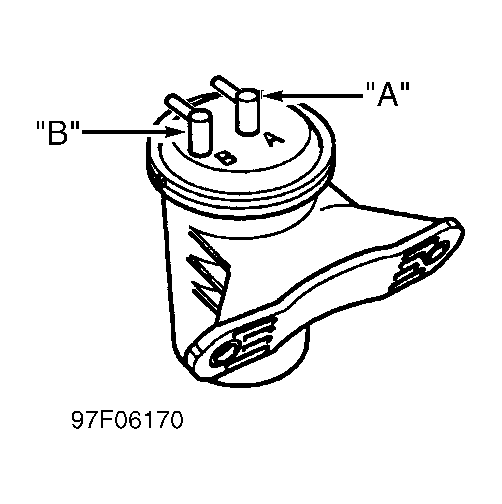

Disconnect vacuum hoses from vacuum tank. Vacuum tank is located under battery tray. See Figure. Replace vacuum tank if it does not operate as follows.
- Blow air through port "B". See Fig 1. Air should flow out of port "A".
- Blow air through port "A". Air should not flow out of port "B".
- Plug port "B". Apply 8 in. Hg to port "A". Vacuum should hold for at least one minute.
