Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Engine Room Junction Block On left side of engine compartment.
Engine Room Relay Block On left side of engine compartment.
Engine Room Relay Block No. 6 On left front of engine compartment, behind headlamp.
Fusible Link Block On left side of engine compartment.

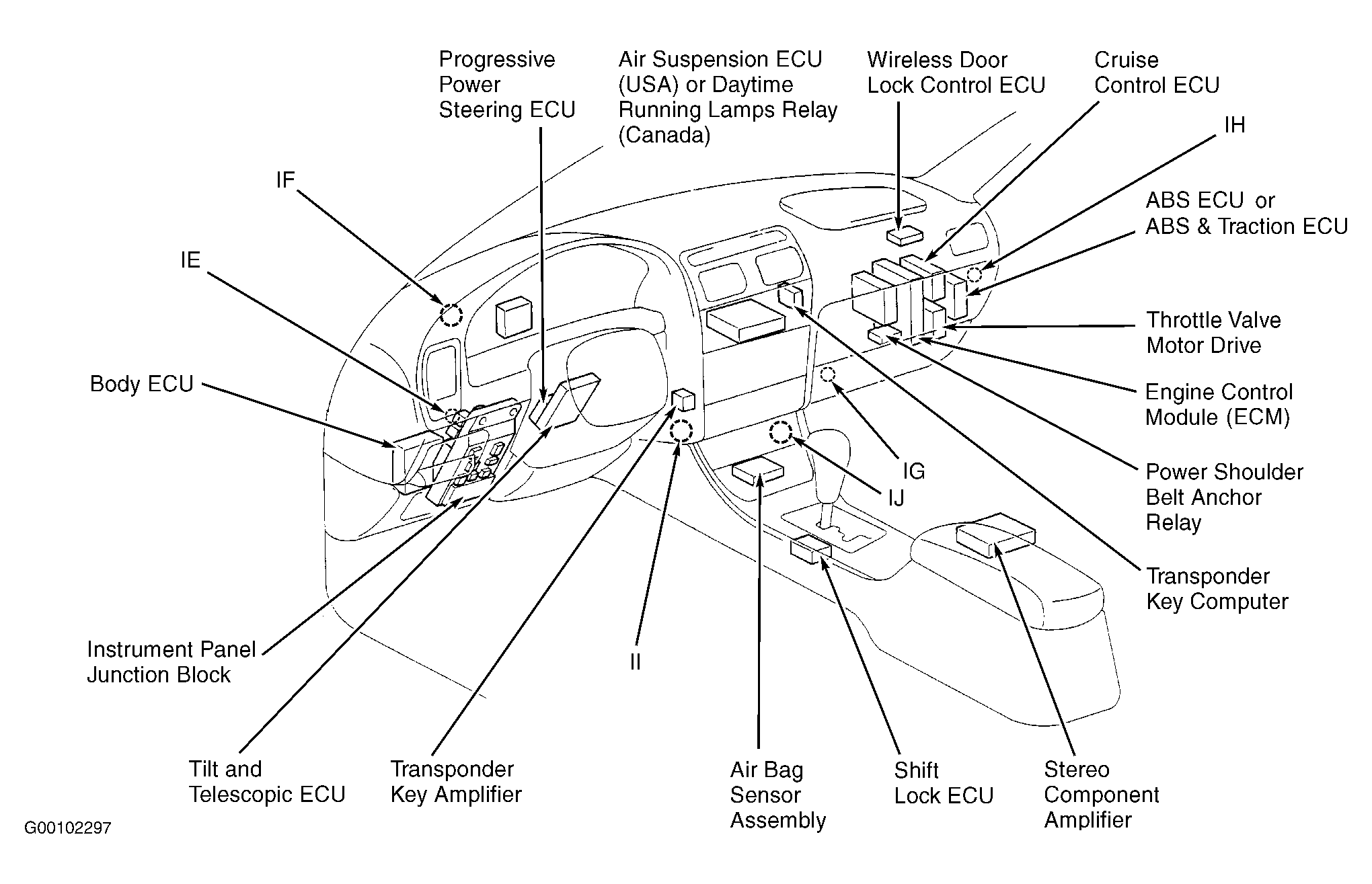

Instrument Panel Junction Block Under left side of dash. See Figure.
