Valve Clearance: Notes

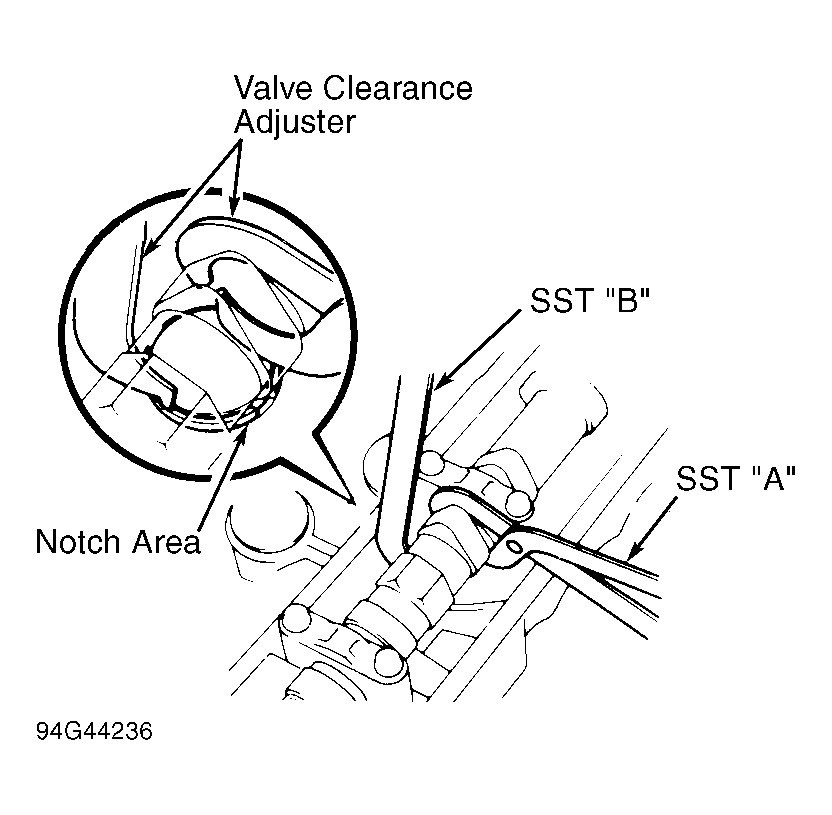

Fig 1: Removing & Installing Typical Valve Clearance Adjusting Shim
G94G44236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

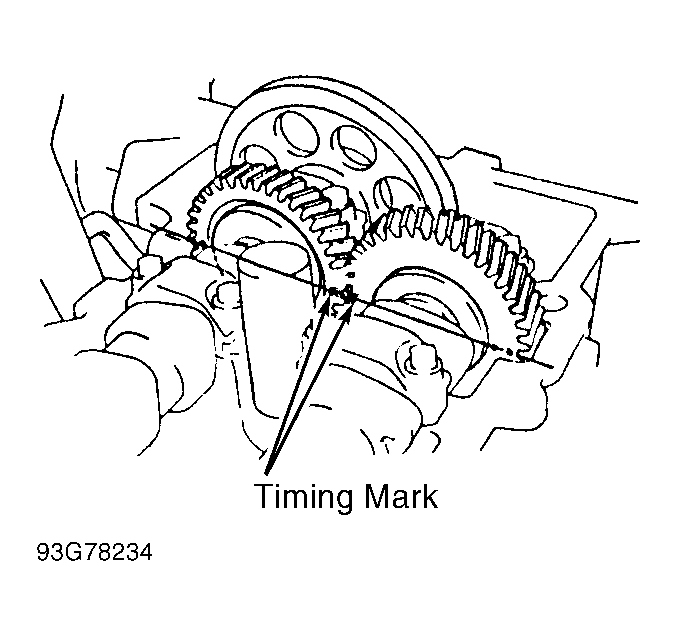

Fig 2: Aligning Camshaft Sprocket Timing Marks
G93G78234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

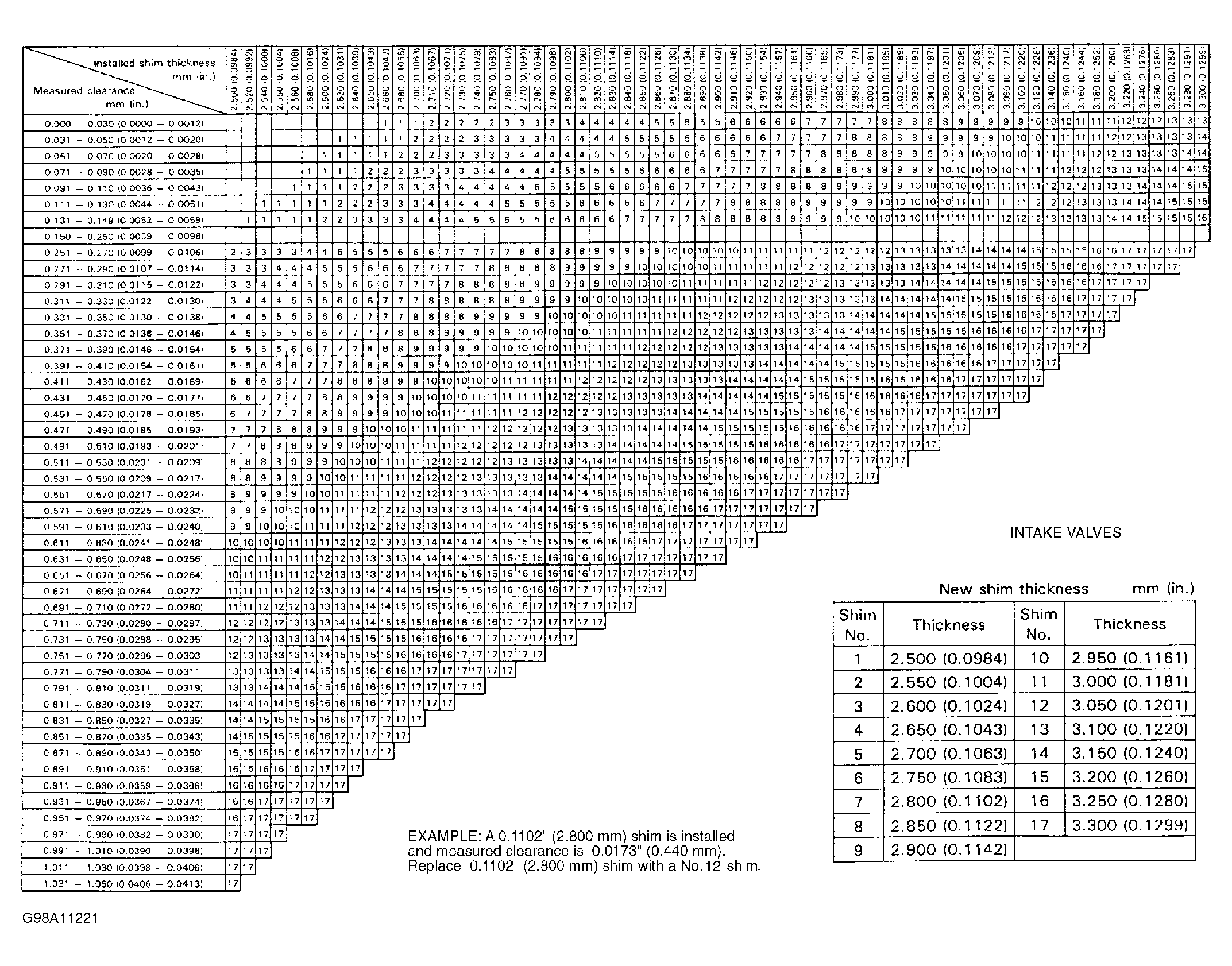

Fig 3: Intake Valve Adjusting Shim Selection Chart
G96D09511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

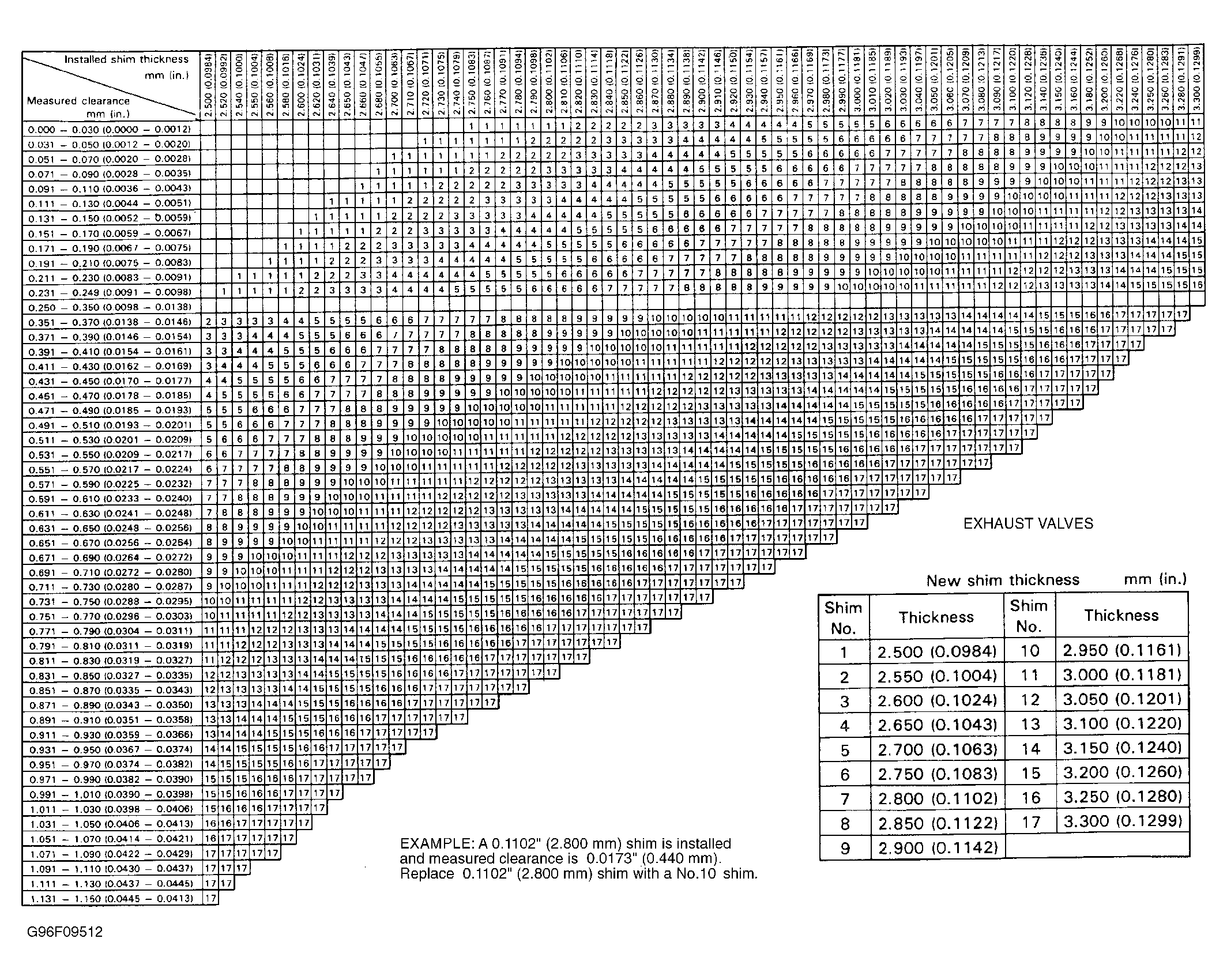

Fig 4: Exhaust Valve Adjusting Shim Selection Chart
G96F09512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
