Vehicle Speed Sensor

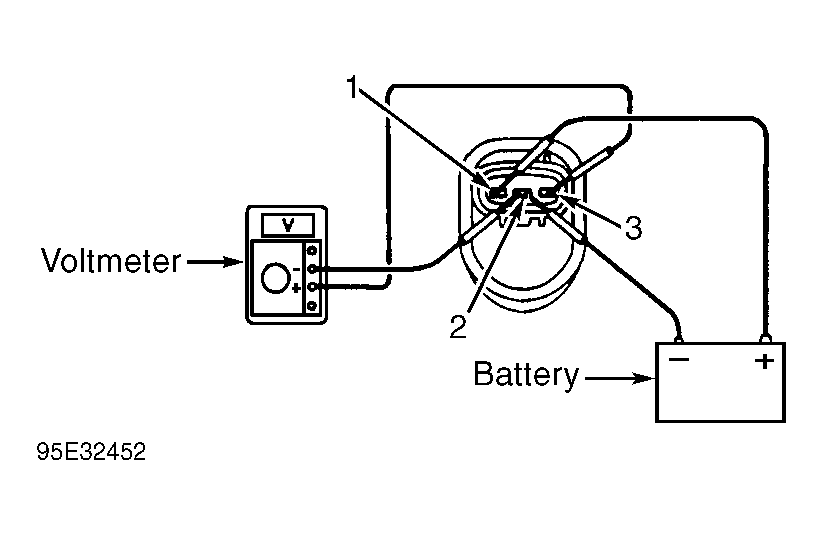

- Vehicle speed sensor is located on transmission and contains a 3-pin electrical connector. Connect voltmeter and battery voltage to vehicle speed sensor terminals. See Fig 1.
- While rotating vehicle speed sensor shaft, ensure voltage changes from zero to at least 11 volts. Voltage should change 4 times per revolution of the shaft. Replace vehicle speed sensor if voltage does not change as specified.
