Park/Neutral Position (PNP) Switch

Loosen bolt that secures PNP switch to transmission. Move shift shaft into Neutral (2 detents from Park). Align groove on shift shaft with neutral basic line on PNP switch. See Fig 1. Tighten bolt.

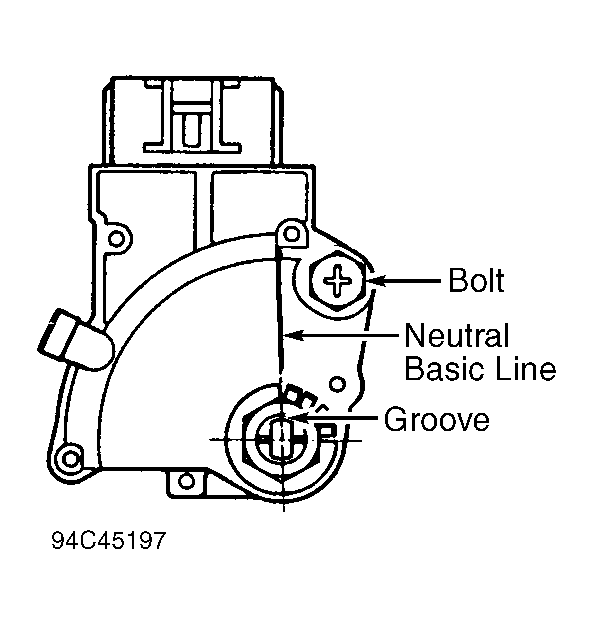

Fig 1: Adjusting PNP Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
