Power Main Relay

Remove power main relay (located in junction block, on left side of instrument panel). Using DVOM, ensure continuity is constant between relay terminals No. 1 and 2. See Fig 1. Apply battery voltage between relay terminals No. 1 and 2. Ensure continuity is present between relay terminals No. 3 and 5. Replace relay if continuity is not as specified.

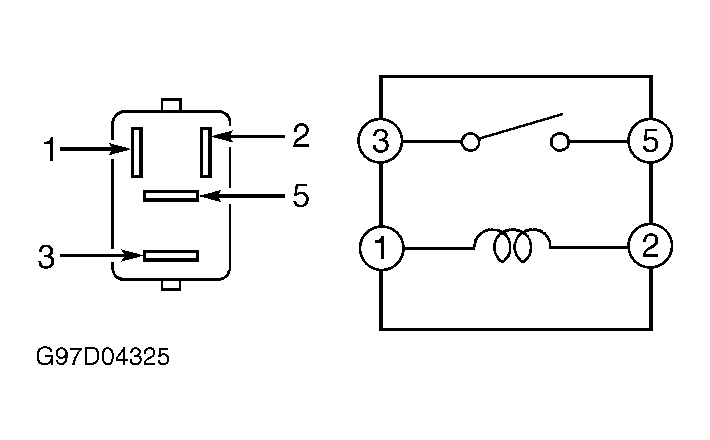

Fig 1: Identifying Power Main Relay Terminals
G97D04325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
