Data Link Connector

OBD-II regulations standardize Data Link Connector (DLC) configurations. On all models, DLC No. 3 connector is located under left side of instrument panel. See Fig 1.

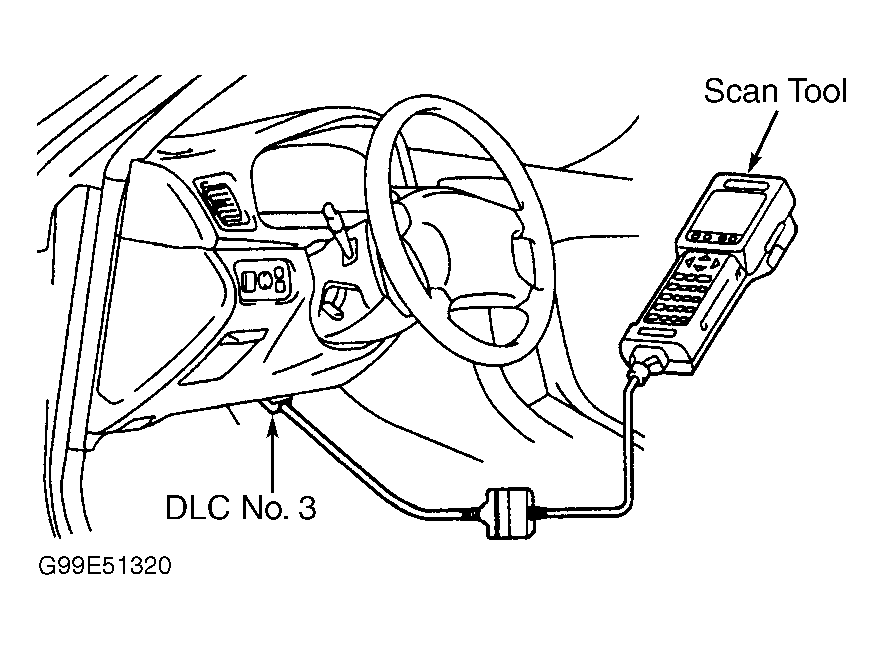

Fig 1: Connecting Scan Tool To DLC No. 3
G99E51320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
