Passenger Switch

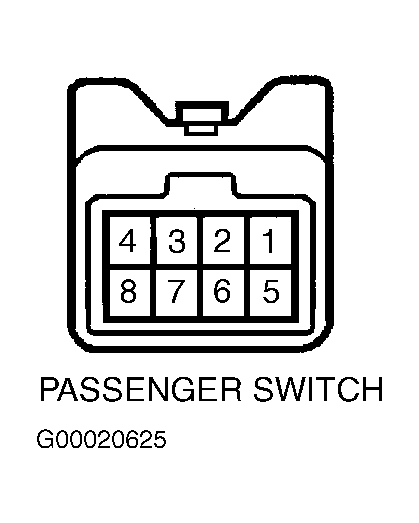

Remove appropriate passenger window switch. Check for continuity between specified terminals of switch. See Fig 1. Ensure continuity is as specified in appropriate switch positions. See PASSENGER SWITCH CONTINUITY TEST table. If continuity is not as specified, replace window switch.
PASSENGER SWITCH CONTINUITY TEST
| Position | Terminals No. | ||
|---|---|---|---|
| OFF | (1) | ||
| UP | 1 & 8 | ||
| UP (Auto) | 3 & 8; 1 & 8 | ||
| DOWN | 6 & 8 | ||
| DOWN (Auto) | 3 & 8; 6 & 8 | ||
|
|||
