Crankshaft Position Sensor: Components

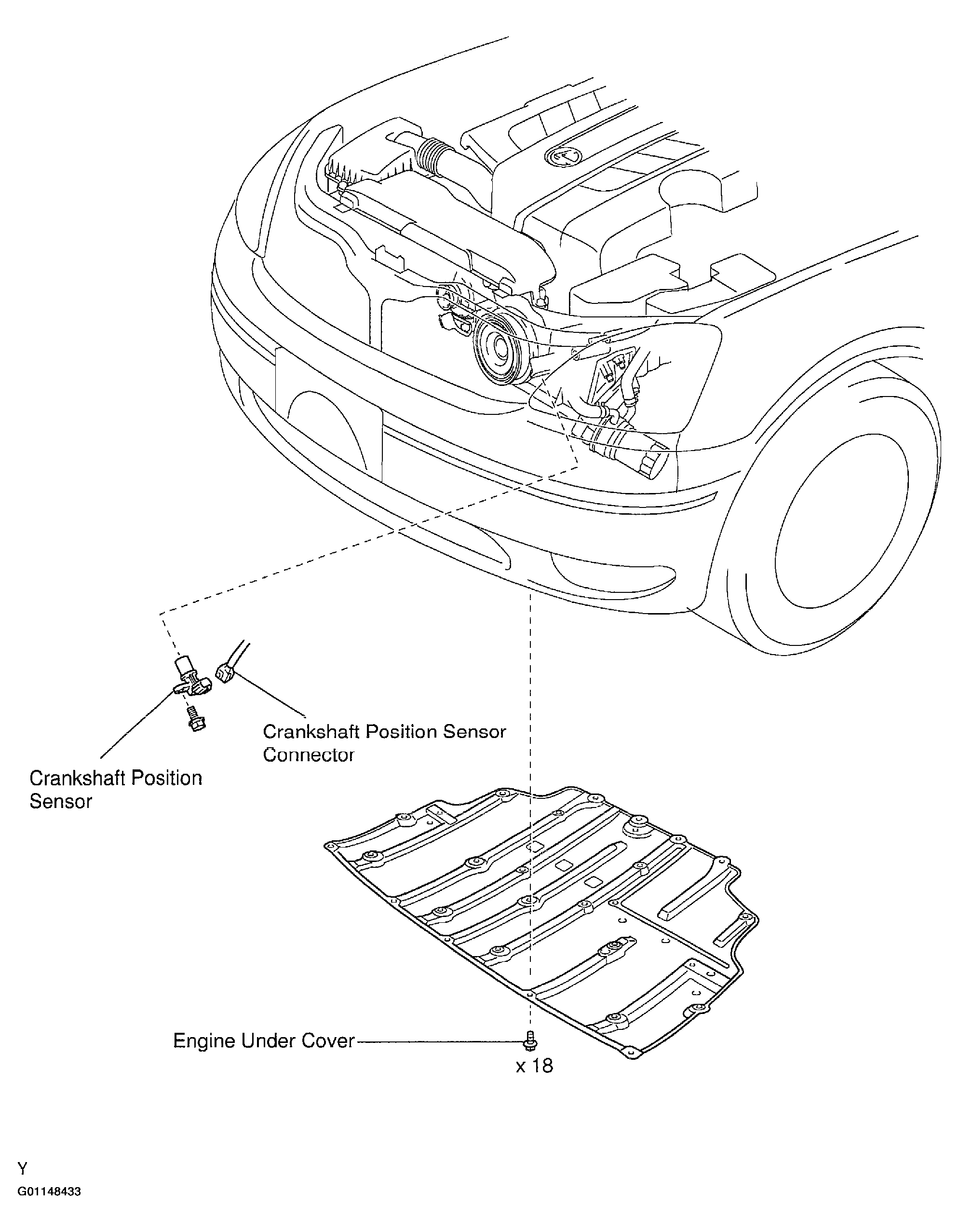

Fig 1: Identifying Crankshaft Position (CKP) Sensor Components
G01148433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
