Charging Systems: Generator: Installation

  1. Install generator.
    1. Install the generator and wire bracket with the bolt and 2 nuts.

      Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

    2. Install the cord clip to the generator with the bolt.
    3. Connect the generator wire and install the rubber cap with the nut.
    4. Connect the generator connector.
  2. Connect power steering oil cooler pipe to oil pan.

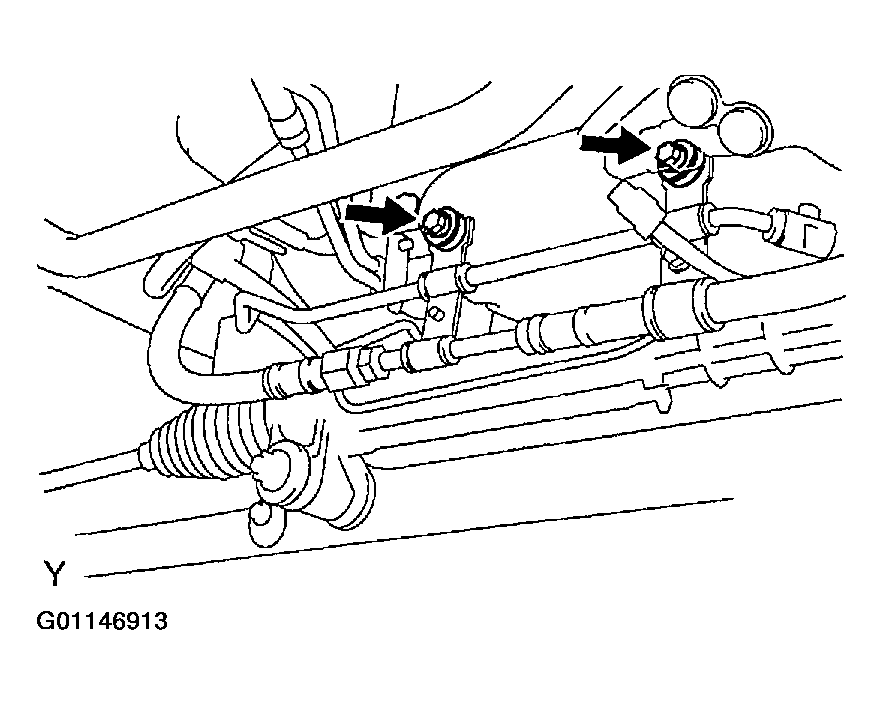

    Fig 1: Connecting Power Steering Oil Cooler Pipes To Oil Pan
    G01146913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Connect the 2 power steering oil cooler pipes to the oil pan with the 2 bolts and 2 screws.

  3. Install drive belt.

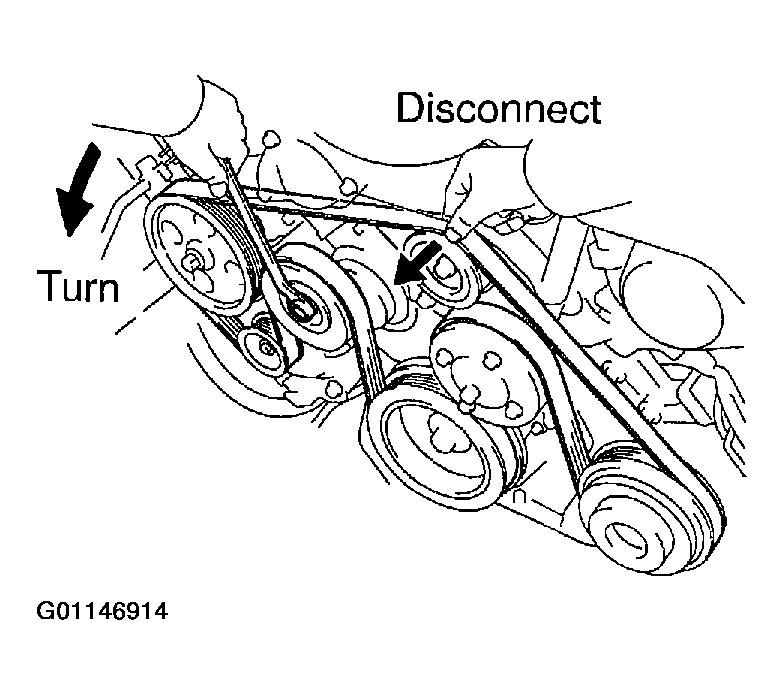

    Fig 2: Installing Drive Belt
    G01146914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Install the drive belt by turning the drive belt tension counterclockwise.

    NOTE: The tension pulley bolt has a left-hand thread.
  4. Install V-bank cover and engine room side cover RH.
  5. Install engine under cover.
